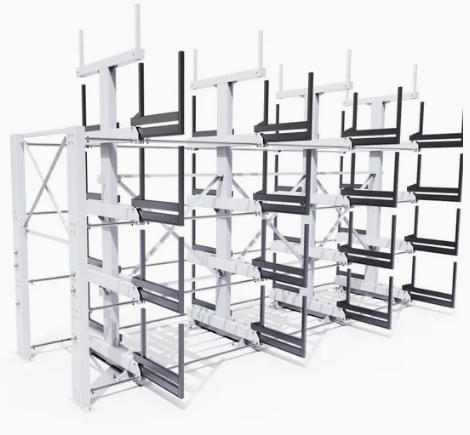

Industrial Roll-out Telescopic Cantilever Rack

Cantilever racking for the warehouse

Columns are punched on both faces at 3 inch (76 mm) pitch. Start single-sided against a wall; when volume doubles, bolt on arms on the reverse face and you have an island—no new columns, no wasted steel. Columns are fully welded to a one-piece base, so the rack arrives square and leaves square even after a decade of hit-and-run bumps. Choose hot-dip galvanising for the yard or powder-coated blue-grey for the hall; both finishes pass 1 000 h salt-spray so you can park the system alongside the wharf and forget about rust blooms.

Category Heavy Duty Cantilever Racking System Tag Cantilever racking for the warehouse

Cantilever Racking for the Warehouse
Herochu Heavy-Duty Systems – CE/ISO Certified, Custom-Built, From $4,899

Google brings you here when you type:

“warehouse cantilever rack for 6 m steel tube”
“outdoor cantilever racking with roof”
“very narrow aisle cantilever rack side-loader”
“48 ft cantilever column high-strength steel”
“convert single-sided to double-sided cantilever rack”

Stay one minute and you will leave with load charts, aisle widths, and a five-year ROI you can drop straight into your CapEx deck.

Why long loads punish ordinary racks

A 6 m bundle of DN200 pipe weighs 2.3 t. Drop it into a pallet rack and the front beams deflect, the forks scrape the paint, and the bottom pipe becomes a banana. Herochu cantilever racks remove the front column entirely. Each bundle lands on a tapered arm, level and open, so the forklift withdraws without choreography and the laser cutter never waits for material again.

Built for indoor brains, outdoor muscle

Heights that touch the roof steel

Standard columns roll-formed from 400 × 200 mm high-strength steel reach 48 ft (14.6 m) without splices. Tapered arms up to 100″ (2 540 mm) compensate for deflection under load, so a 1 t bundle does not create a ski-jump at the tip. If your building eave is 16 m we simply splice two columns with a hidden fish-plate—still one-day installation, still CE certified.

Very narrow aisle, very big savings

When floor space costs more than steel, we bring the rack to the side-loader. Arm length shortens to 600 mm, aisle width drops to 1.6 m, and a guided rail keeps the truck centred. One outdoor contractor in Rotterdam added 38 % more pipe in the same fenced compound and avoided a €180 k land lease. The guide rail bolts to the floor before the columns go up, so no retro-fit drilling through already-galvanised steel.

Load and clearance data you can quote

表格

复制

Arm Length	Capacity per Arm	Column Height	Centres	Deflection @ Load	Price per Bay*
600 mm	1 500 kg	3 000 mm	900 mm	1.2 mm	$4 899
1 000 mm	1 200 kg	5 000 mm	1 000 mm	1.8 mm	$5 750
1 500 mm	1 000 kg	7 000 mm	1 200 mm	2.4 mm	$6 900
2 000 mm	800 kg	10 000 mm	1 400 mm	3.0 mm	$8 100

*Price includes columns, arms, braces, galvanising, bolts, and CE documentation. Freight FCA Shanghai; one 20 GP takes 12 bays.

Accessories that turn arms into a platform

Pipe trays: 50 mm upturned edge stops bundles from side-roll.
Lumber poles: 75 mm diameter steel tube sleeves over the arm to protect planed timber.
Deck panels: 2 mm ribbed sheet welded to arms creates a solid shelf for loose boards.
Safety drop-pins: captive stainless pin clicks into the arm tip—impossible to lose, zero roll-off.
Narrow-aisle guide rail: 100 × 60 mm angle, pre-drilled, zinc plated, installs in 30 m sections.

From furniture to frac pipe – real sites

Furniture distributor, North Carolina – 8 m double-sided racks with deck panels store sofa frames 3 levels high. Pick accuracy improved 22 % because each SKU has its own pocket.
Lumber yard, Oslo – outdoor galvanised units with roof frames keep 6 m spruce dry. Insurance premium dropped 15 % after the insurer noted the absence of floor-contact moisture rot.
Oil-field supplier, Alberta – 48 ft columns store 13 m drill rod. Arm capacity upgraded to 1.5 t; wind skirt added to stop sway in 120 km/h prairie gusts.

Five-year cost model you can plagiarise

Site: 2 000 m² warehouse, lease €68/m², 40 t monthly tube throughput, 2.5 % scrap due to fork gouge and moisture.

Installation

36 m double-sided cantilever, 5 m high, 1 000 mm arms
Cost: $47 200 delivered and installed
Floor recovered: 180 m²
Scrap rate after 9 months: 0.9 %

Annual savings

Lease avoided: 180 m² × €68 = €12 240
Scrap reduction: 40 t × 12 × 1.6 % × €700/t = €5 376
Labor (25 min less per bundle): 1 440 bundles × 0.42 h × €20/h = €12 096
Total: €29 712 per year
Payback: 19 months

The accountant’s comment: “It is not racking, it is a margin engine with paint on it.”

Seismic and wind engineering included

We run finite-element analysis per EN 1993 and ASCE 7. Provide your zip code and we return column base-plate sizes, anchor embedment depth, and bracing schedule stamped by a registered engineer. Galvanised bracing rods swap for angle iron when arm length exceeds 1.5 m to reduce lateral deflection to <1:250.

Install in a shift, relocate in a day

Columns ship upright, arms nested in a crate, braces banded flat. Two fitters, one scissor lift, one impact wrench. Base plates sit on 150 mm anchors or chemical studs; no footing pour required. Dismantle sequence is reverse—unbolt, stack, shrink-wrap. A Swedish client moved the entire yard in eight hours when the port authority reclaimed the leased land.

How to order without typing a novel

Send longest load, heaviest bundle, clear height, aisle constraint.
We return 3D STEP + stamped drawing + price in six hours.
Approve, 30 % deposit, production 18 days, ship 25 days.
Install Saturday, load pipe Monday, invoice faster Tuesday.

Q1: What steps should I take to start the procurement process?

You may get in touch with our backend technical staff first. Based on your specific parameters, we will formulate a suitable technical solution and provide a quotation. Alternatively, you can leave your contact details—such as WhatsApp, WeChat, or email address—and our professional sales team will reach out to you proactively.

Q2: How can I inform you of my need for suitable shelves?

You can share key information with us, including the type of items you plan to store on the shelves, the dimensions of those items, the quantity of shelves required, and any other specific details you have. With this information, we will develop a professional solution tailored to your needs. If you prefer, you can also leave your contact information, and our specialized team will contact you to address your questions.

Q3: Should I choose a loading robotic arm or an integrated loading and unloading system?

To determine the right option, two key factors need to be considered first:

The table size of your laser cutting machine must meet the matching requirements for the equipment.
We need to know your specific loading method—whether it is a board rack, exchange platform, or material warehouse.

For a more accurate recommendation based on your specific needs, please leave your contact information, and we will provide targeted service.

Q4: Do you offer on-site installation and debugging services?

Yes, we do. We can dispatch professional technicians to your factory to carry out on-site installation and debugging of the robotic arm, and we will continue working until the equipment completes a successful trial operation. Our team has provided such services in many countries, including South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, and Mexico.

Q5: What measures do you take to ensure product quality?

We have a comprehensive quality assurance system, supported by the following key measures:

A team of over 40 technical engineers, with professional mechanical engineers responsible for debugging equipment and resolving any technical concerns.
A dedicated quality inspection department that strictly adheres to ISO9001 quality standards, ensuring all products meet the required quality specifications.
Professional CE certification, which guarantees smooth export procedures for our products to global markets.
Mandatory load testing for all equipment before shipment, ensuring the structural safety and operational stability of each product.

Q6: Where is your factory situated?

Our factory is located in Jinan, Shandong Province, China, specifically at No. 10 Industrial Park, Jiyang Street. It features a modern, standard workshop covering an area of 10,000 square meters.

Q7: How can I verify your company’s strength?

We offer two convenient ways for you to assess our company’s capabilities:

We can arrange a video tour of our factory, allowing you to remotely view our production environment and facilities.
We warmly welcome you to visit our factory in person for an on-site inspection.

Q8: What type of company are you?

We are Jinan Constant Storage Machinery Manufacturing Co., Ltd., a high-tech enterprise that integrates research and development, production, sales, installation, and after-sales service. Our core product range includes intelligent sheet metal material warehouses, drawer-type sheet metal shelves, telescopic cantilever shelves, servo swing arm manipulators, gantry loading and unloading manipulators, fully automatic loading and unloading systems, and heavy-duty sheet metal and pipe storage shelves. Equipped with a professional technical team and advanced production equipment, we are committed to providing high-quality, high-performance mechanical products and customized solutions to customers around the world.
