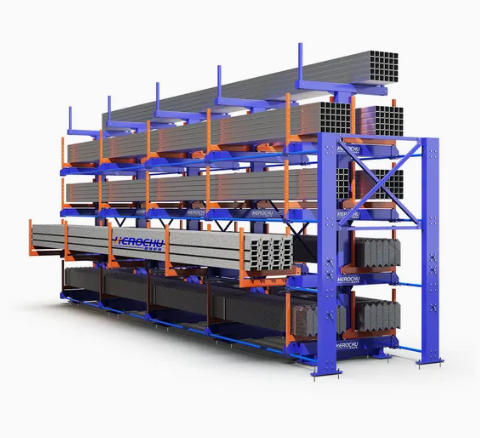

Cantilever racking system

At Herochu, we’ve refined this storage solution to solve the unique challenges of long-load storage—creating a flexible, durable, and efficient system that adapts to your workshop’s needs. Certified to CE, UE, and ISO 9001 standards, fully customizable, and starting at just $4,899, our cantilever racking systems aren’t just storage—they’re a way to streamline operations, protect inventory, and maximize your space.

Category Heavy Duty Cantilever Racking System Tag Cantilever racking system

What Is a Cantilever Racking System? | Herochu’s Guide to Long Load Storage

If you’ve ever struggled to store long, heavy, or bulky materials—think steel pipes, wooden boards, construction beams, or metal profiles—you know the frustration of wasted space, damaged inventory, and slow access. Traditional shelving or pallet racks often fall short here: they’re designed for boxed or uniform items, not the irregular shapes and lengths that define industries like construction, woodworking, and manufacturing. That’s where a cantilever racking system comes in. At Herochu, we’ve refined this storage solution to solve the unique challenges of long-load storage—creating a flexible, durable, and efficient system that adapts to your workshop’s needs. Certified to CE, UE, and ISO 9001 standards, fully customizable, and starting at just $4,899, our cantilever racking systems aren’t just storage—they’re a way to streamline operations, protect inventory, and maximize your space.

Defining Cantilever Racking: How It Works

At its core, a cantilever racking system is a specialized storage structure built to hold long, heavy, or oversized materials that don’t fit in standard racks. Unlike traditional shelving (which relies on horizontal supports across both sides), cantilever racks use a simple yet powerful design: central columns with cantilevered arms screwed into them, creating open, unobstructed storage space. These arms extend outward from the columns—no back or side panels—to cradle long loads, ensuring they’re supported evenly along their length.

Here’s why this design matters: imagine storing a 10-foot steel pipe on a standard shelf. The pipe would hang over the edges, risking damage to the shelf or the pipe itself, and you’d struggle to access it without moving other items. A cantilever rack eliminates this problem. The pipe rests securely on the extended arms, with multiple support points to prevent warping or shifting. The central columns are reinforced with a bracing system, adding rigidity and strength to handle heavy weights. And because the arms are adjustable (you can move them up or down the columns), you can customize the height to fit materials of different lengths—from short boards to extra-long beams.

Herochu’s cantilever racking systems take this design a step further. We offer configurations for every need: single-sided (arms on one side of the columns, perfect for wall mounting), double-sided (arms on both sides, maximizing capacity in open spaces), mobile (modular units that adjust to your layout), and heavy-duty (built for loads over 1,000 kg per arm). Each system is engineered to be easy to install, even in busy workshops, and built with high-quality steel to withstand the wear and tear of industrial use.

The Core Benefits of Herochu’s Cantilever Racking Systems

Cantilever racking isn’t just a “better way to store long materials”—it’s a solution that delivers tangible benefits to your bottom line. Here’s how Herochu’s systems stand out:

1. High Load Capacity: Built for Heavy-Duty Use

One of the biggest myths about cantilever racks is that they’re “lightweight” or limited in strength. Nothing could be further from the truth. Herochu’s standard cantilever arms support 410 kg to 1,000 kg per arm, and our heavy-duty models handle loads exceeding 1,000 kg per arm—making them ideal for industrial-grade materials like steel plates, concrete beams, or large-diameter pipes. This strength comes from our choice of materials: we use high-gauge steel for the columns and arms, with welded joints and reinforced bracing to distribute weight evenly. For a construction company storing 800-kg steel beams, this means no more worrying about racks bending or collapsing—your inventory stays safe, and your team stays protected.

2. Easy Adaptation: Adjustable for Every Material

No two workshops store the same materials. One day, you might need to store 2-meter wooden boards; the next, 5-meter aluminum profiles. Herochu’s cantilever racks are designed to adapt on the fly. Our arms are height-adjustable, with pre-drilled holes in the central columns that let you reposition them in minutes—no special tools required. This flexibility means you don’t need to buy separate racks for different materials; one system can handle it all. For a woodworking shop that switches between plywood sheets, lumber, and moldings, this adaptability cuts down on storage costs and keeps your space organized. We also offer safety accessories like arm stops (to prevent accidental load falls) and guards (to protect the rack from forklift damage), so you can customize the system to your safety needs too.

3. Efficient Storage: Maximize Space, Minimize Waste

Wasted space is wasted money—especially in warehouses or workshops where square footage is at a premium. Cantilever racking optimizes space in two key ways: it uses vertical storage (so you can stack materials up instead of out) and eliminates the need for back panels or crossbars (which block space in traditional racks). For example, a manufacturing facility storing 3-meter metal pipes might previously have laid them on the floor, taking up 10 square meters of space. With a Herochu double-sided cantilever rack, those same pipes can be stored vertically, using just 2 square meters—freeing up 8 square meters for other equipment or workflow. This efficiency isn’t just about floor space, either: the open design means you can store materials of varying lengths side by side, without gaps. It’s why our clients often report a 30-40% increase in usable storage space after switching to Herochu’s cantilever systems.

4. Direct Access: Speed Up Operations, Reduce Downtime

In busy workshops, time spent searching for materials is time lost. Traditional racks force you to move one item to get to another—for example, if a steel beam is behind a stack of pipes, you have to unload the pipes first, retrieve the beam, then reload the pipes. Cantilever racking eliminates this “digging” by providing direct access to every load. Each material is stored on its own set of arms, so you can grab what you need with a forklift or crane in seconds—no moving other items. For a logistics company that ships 50+ orders a day, this direct access cuts handling time by 25% or more, reducing downtime and keeping orders on track. It also minimizes the risk of damage: when you don’t have to move other materials to reach what you need, there’s less chance of scratches, dents, or warping.

5. High Durability: Built to Last in Demanding Environments

Industrial workshops are tough on equipment—dust, moisture, heavy impacts, and constant use can wear down cheap storage systems quickly. Herochu’s cantilever racks are built to withstand these conditions. We use corrosion-resistant steel (with optional powder coating for extra protection) to prevent rust, even in humid or dusty environments. The bracing system adds structural integrity, so the rack stays stable even if a forklift bumps it accidentally. And because the arms are screwed into the columns (not welded), you can replace a damaged arm quickly instead of replacing the entire rack. Our clients in construction—where racks are exposed to outdoor elements and heavy loads—often report using their Herochu cantilever systems for 10+ years with minimal maintenance. It’s a long-term investment that pays off in reduced replacement costs.

Who Uses Cantilever Racking? Applications Across Industries

Cantilever racking’s versatility makes it a staple in industries that deal with long, heavy, or bulky materials. Here’s how different sectors benefit from Herochu’s systems:

1. Construction: Keep Materials Accessible and Safe

Construction sites and yards store a mix of long, heavy materials—steel beams, concrete pipes, lumber, and metal profiles. These materials need to be accessible quickly (since delays on-site cost money) and stored safely (to prevent accidents). Herochu’s cantilever racks let construction teams store these materials vertically, keeping them off the ground (where they can get wet or damaged) and within easy reach. For example, a commercial construction company building an office tower might use a double-sided cantilever rack to store 6-meter steel beams. The direct access means the crew can grab a beam when they need it, without moving other materials, and the safety stops prevent the beams from falling. Our heavy-duty models are also perfect for storing precast concrete elements, which can weigh thousands of kilograms.

2. Wood Industry: Protect Delicate Materials

Woodworking shops, furniture manufacturers, and lumberyards deal with materials that are both long and delicate—plywood sheets, hardwood boards, and moldings can scratch or warp easily if stored poorly. Herochu’s cantilever racks solve this by providing even support along the length of the wood, preventing warping. The adjustable arms let shops store different thicknesses of wood (from thin veneers to thick timbers) on the same rack, and the open design keeps dust from accumulating on the surfaces. A custom furniture maker, for example, might use a single-sided cantilever rack mounted against a wall to store 3-meter oak boards. The direct access means they can select the exact board they need without moving others, and the smooth arms prevent scratches on the wood’s surface.

3. Manufacturing and Logistics: Streamline Production and Distribution

Manufacturing plants (especially those making automotive parts, industrial machinery, or HVAC equipment) often need to store long components like metal rods, plastic extrusions, or ductwork. Logistics centers that ship these components need to keep them organized for fast order fulfillment. Herochu’s cantilever racks help both sectors streamline operations. For a manufacturer making HVAC ductwork, a mobile cantilever rack lets them move the ductwork closer to the production line, reducing transport time. For a logistics company shipping metal rods, a double-sided cantilever rack maximizes storage capacity in the warehouse, so they can hold more inventory without expanding their space. The direct access also speeds up order picking—workers can find and load the right rod in minutes, not hours.

4. Metal Fabrication: Handle Heavy, Sharp Materials

Metal fabrication shops store sheet metal, steel plates, and metal profiles—materials that are heavy, sharp, and prone to rust. Herochu’s corrosion-resistant cantilever racks keep these materials dry and rust-free, and the strong arms handle the weight (our heavy-duty models can support up to 2,000 kg per arm for thick steel plates). The open design also makes it easy to inspect the metal for defects before use. A metal fabricator making custom steel parts might use an adjustable-arm cantilever rack to store sheets of different thicknesses. They can adjust the arm height to fit each sheet, and the direct access means they can grab the right sheet for a job without moving a stack of other materials—saving time and reducing the risk of cuts from sharp edges.

Herochu’s Cantilever Racking Options: Find the Right Fit for Your Workshop

Not all cantilever racks are the same—Herochu offers a range of configurations to match your specific needs. Here’s how to choose:

1. Single Cantilever Rack: Perfect for Tight Spaces

If your workshop is small or you want to use wall space efficiently, a single cantilever rack is the way to go. It has arms on one side of the central columns, so you can mount it against a wall—no wasted space in the middle of the room. It’s ideal for storing materials that you only need to access from one side, like lumber along a workshop wall. Our single racks support up to 1,000 kg per arm, making them suitable for medium-weight materials. Starting at $4,899, they’re also the most budget-friendly option for small businesses.

2. Double Cantilever Rack: Maximize Capacity in Open Spaces

For large warehouses or facilities with open floor space, a double cantilever rack is a game-changer. It has arms on both sides of the columns, so you can store materials on two sides—doubling your storage capacity without doubling the floor space. It’s perfect for high-volume storage, like a logistics center storing metal pipes. Our double racks also support up to 1,000 kg per arm (with heavy-duty options for more), and the free-standing design lets you arrange them in rows to create efficient aisles.

3. Mobile Cantilever Rack: Flexibility for Changing Layouts

If your workshop layout changes often (like a custom manufacturing shop that takes on different projects), a mobile cantilever rack is ideal. It has wheels on the base, so you can move the entire rack to a new location in minutes. This flexibility means you can reposition storage to fit your current project—for example, moving a rack of steel beams closer to the welding station when you’re working on a large order. Our mobile racks are still sturdy (they support up to 800 kg per arm) and come with locking wheels to keep them in place when in use.

4. Heavy-Duty Cantilever Rack: For Extra-Heavy Loads

Some materials—like thick steel plates, precast concrete beams, or industrial machinery parts—require more strength than standard racks. Herochu’s heavy-duty cantilever racks are built for these loads, with arms that support over 1,000 kg each. The columns are thicker, the bracing is reinforced, and the arms are made from high-strength steel to handle the weight. They’re perfect for construction companies, metal foundries, and heavy-industry manufacturers that need to store ultra-heavy materials safely.

5. Cantilever Racking with Additional Protection: Safety First

Safety is non-negotiable in industrial settings. That’s why we offer cantilever racks with optional safety accessories: arm stops (plastic or metal guards that prevent loads from sliding off the end of the arms), column guards (to protect the columns from forklift impacts), and anti-dust covers (to keep materials clean in dusty environments). These accessories are easy to add to any rack configuration, so you can customize the system to meet your safety standards.

Why Choose Herochu’s Cantilever Racking Systems?

With so many storage options on the market, why trust Herochu? Here’s what sets us apart:

1. Certifications You Can Rely On

Our cantilever racks are CE, UE, and ISO 9001 certified—meaning they meet strict international standards for quality, safety, and performance. These certifications aren’t just stickers; they’re proof that our racks have been tested to withstand heavy loads, resist corrosion, and operate safely in industrial environments. When you buy a Herochu rack, you know you’re getting a product that’s built to last.

2. Full Customization for Your Workshop

No two workshops are the same, so why settle for a one-size-fits-all rack? Herochu works with you to customize your cantilever system: we’ll help you choose the right configuration (single, double, mobile, or heavy-duty), adjust the arm length and height to fit your materials, and add safety accessories if you need them. Whether you have a small woodshop or a large manufacturing plant, we’ll design a system that fits your space and your budget.

3. Affordable Pricing, Starting at $4,899

We believe efficient storage shouldn’t be a luxury. That’s why our entry-level single cantilever racks start at just $4,899—making them accessible to small businesses and startups. And even our heavy-duty models are priced competitively, with transparent pricing (no hidden fees). We also offer flexible payment options for larger orders, so you can invest in your storage without straining your cash flow.

4. Expert Support Every Step of the Way

Buying a cantilever rack is just the start—we’re with you through installation, maintenance, and beyond. Our team of experts will visit your workshop to assess your space, recommend the right configuration, and provide a detailed quote. We also offer professional installation (so you don’t have to worry about putting the rack together incorrectly) and ongoing maintenance tips to keep your system in top shape. If you ever need to replace an arm or add an accessory, we’ll ship it to you quickly—minimizing downtime.

Conclusion: Transform Your Storage with Herochu’s Cantilever Racking

A cantilever racking system is more than just a place to store materials—it’s a tool that can streamline your operations, protect your inventory, and maximize your space. Whether you’re in construction, woodworking, manufacturing, or logistics, Herochu’s CE, UE, and ISO 9001 certified systems are designed to meet your unique needs. With customizable configurations, high load capacity, direct access, and durability, our racks are a long-term investment that pays off in reduced costs and increased productivity.

Starting at $4,899, there’s no better time to upgrade your storage. Contact Herochu today to schedule a free workshop assessment. Our team will help you design a cantilever racking system that fits your space, your materials, and your budget—and show you how it can transform the way you work. Say goodbye to wasted space and slow access—hello to efficient, reliable storage with Herochu.

Q1: What steps should I take to start the procurement process?

You may get in touch with our backend technical staff first. Based on your specific parameters, we will formulate a suitable technical solution and provide a quotation. Alternatively, you can leave your contact details—such as WhatsApp, WeChat, or email address—and our professional sales team will reach out to you proactively.

Q2: How can I inform you of my need for suitable shelves?

You can share key information with us, including the type of items you plan to store on the shelves, the dimensions of those items, the quantity of shelves required, and any other specific details you have. With this information, we will develop a professional solution tailored to your needs. If you prefer, you can also leave your contact information, and our specialized team will contact you to address your questions.

Q3: Should I choose a loading robotic arm or an integrated loading and unloading system?

To determine the right option, two key factors need to be considered first:

The table size of your laser cutting machine must meet the matching requirements for the equipment.
We need to know your specific loading method—whether it is a board rack, exchange platform, or material warehouse.

For a more accurate recommendation based on your specific needs, please leave your contact information, and we will provide targeted service.

Q4: Do you offer on-site installation and debugging services?

Yes, we do. We can dispatch professional technicians to your factory to carry out on-site installation and debugging of the robotic arm, and we will continue working until the equipment completes a successful trial operation. Our team has provided such services in many countries, including South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, and Mexico.

Q5: What measures do you take to ensure product quality?

We have a comprehensive quality assurance system, supported by the following key measures:

A team of over 40 technical engineers, with professional mechanical engineers responsible for debugging equipment and resolving any technical concerns.
A dedicated quality inspection department that strictly adheres to ISO9001 quality standards, ensuring all products meet the required quality specifications.
Professional CE certification, which guarantees smooth export procedures for our products to global markets.
Mandatory load testing for all equipment before shipment, ensuring the structural safety and operational stability of each product.

Q6: Where is your factory situated?

Our factory is located in Jinan, Shandong Province, China, specifically at No. 10 Industrial Park, Jiyang Street. It features a modern, standard workshop covering an area of 10,000 square meters.

Q7: How can I verify your company’s strength?

We offer two convenient ways for you to assess our company’s capabilities:

We can arrange a video tour of our factory, allowing you to remotely view our production environment and facilities.
We warmly welcome you to visit our factory in person for an on-site inspection.

Q8: What type of company are you?

We are Jinan Constant Storage Machinery Manufacturing Co., Ltd., a high-tech enterprise that integrates research and development, production, sales, installation, and after-sales service. Our core product range includes intelligent sheet metal material warehouses, drawer-type sheet metal shelves, telescopic cantilever shelves, servo swing arm manipulators, gantry loading and unloading manipulators, fully automatic loading and unloading systems, and heavy-duty sheet metal and pipe storage shelves. Equipped with a professional technical team and advanced production equipment, we are committed to providing high-quality, high-performance mechanical products and customized solutions to customers around the world.
