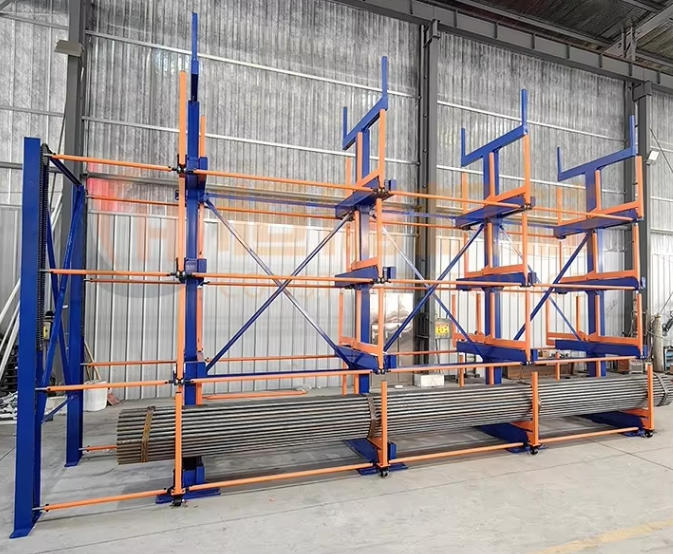

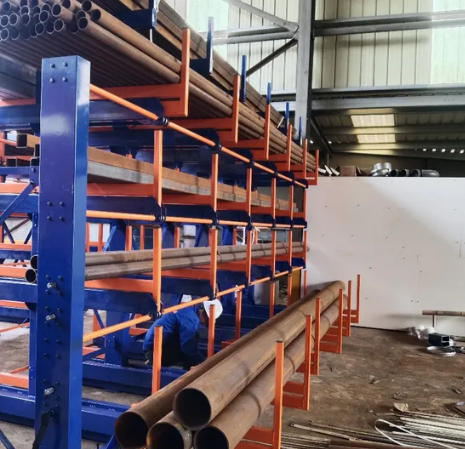

Cantilever steel bar tubing & pipe storage racks

Cantilever steel bar tubing & pipe storage racks

Herochu’s cantilever rack systems provide engineered solutions with:

Modular design for seamless expansion
Heavy-duty construction (up to 5,000kg capacity)
100% accessibility to stored materials

Category Heavy Duty Cantilever Racking System Tag Cantilever steel bar tubing & pipe storage racks

Herochu Cantilever Rack Systems: The Ultimate Storage Solution for Long Materials

CE/UE/ISO 9001 Certified | Custom Configurations Starting at $3,890

Addressing Industrial Storage Challenges

Manufacturers and distributors constantly struggle with:

Space constraints: Traditional storage methods waste valuable floor space
Material damage: Improper storage leads to bent tubes and scratched surfaces
Safety hazards: Heavy materials stored at height create fall risks

Herochu’s cantilever rack systems provide engineered solutions with:

Modular design for seamless expansion
Heavy-duty construction (up to 5,000kg capacity)
100% accessibility to stored materials

Technical Specifications

Core Components

Component	Features	Customization Options
Uprights	12′-30′ heights, removable/welded bases	Single/double-sided configurations
Arms	Straight (3/8″ pitch) or inclined (20° taper) with optional lips	Length: 3′-8′ (capacity varies)
Braces	X-brace system (3′, 4′, 5′ lengths) for stability	Number based on upright height

Configuration Matrix

Model	Max Load	Height	Sides	Ideal For
HC-12MD	3t	12′	Double	Auto parts storage
HC-16HD	5t	16′	Single	Construction materials
HC-30XHD	5t	30′	Double	Aerospace components

Why Choose Herochu Cantilever Racks?

Space Efficiency
- Vertical storage increases capacity by 40%
- Uneven overhang capability (unlike pallet racks)
Operational Flexibility
- Forklift-compatible loading
- Modular expansion (add arms/braces as needed)
Safety Features
- Anti-roll lips on inclined arms
- Drop pins for added security

Industry Applications

Metal Fabrication: Seamless steel pipe storage
Construction: Pre-cut lumber inventory
Energy: Wind turbine component organization
Automotive: Long extrusion management

Implementation Benefits

✓ 50% faster material retrieval
✓ 30% increased warehouse capacity
✓ 15% reduction in workplace accidents
✓ 10-year structural warranty

Contact our engineers today for a customized storage audit and 3D layout simulation.

Q1: What steps should I take to start the procurement process?

You may get in touch with our backend technical staff first. Based on your specific parameters, we will formulate a suitable technical solution and provide a quotation. Alternatively, you can leave your contact details—such as WhatsApp, WeChat, or email address—and our professional sales team will reach out to you proactively.

Q2: How can I inform you of my need for suitable shelves?

You can share key information with us, including the type of items you plan to store on the shelves, the dimensions of those items, the quantity of shelves required, and any other specific details you have. With this information, we will develop a professional solution tailored to your needs. If you prefer, you can also leave your contact information, and our specialized team will contact you to address your questions.

Q3: Should I choose a loading robotic arm or an integrated loading and unloading system?

To determine the right option, two key factors need to be considered first:

The table size of your laser cutting machine must meet the matching requirements for the equipment.
We need to know your specific loading method—whether it is a board rack, exchange platform, or material warehouse.

For a more accurate recommendation based on your specific needs, please leave your contact information, and we will provide targeted service.

Q4: Do you offer on-site installation and debugging services?

Yes, we do. We can dispatch professional technicians to your factory to carry out on-site installation and debugging of the robotic arm, and we will continue working until the equipment completes a successful trial operation. Our team has provided such services in many countries, including South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, and Mexico.

Q5: What measures do you take to ensure product quality?

We have a comprehensive quality assurance system, supported by the following key measures:

A team of over 40 technical engineers, with professional mechanical engineers responsible for debugging equipment and resolving any technical concerns.
A dedicated quality inspection department that strictly adheres to ISO9001 quality standards, ensuring all products meet the required quality specifications.
Professional CE certification, which guarantees smooth export procedures for our products to global markets.
Mandatory load testing for all equipment before shipment, ensuring the structural safety and operational stability of each product.

Q6: Where is your factory situated?

Our factory is located in Jinan, Shandong Province, China, specifically at No. 10 Industrial Park, Jiyang Street. It features a modern, standard workshop covering an area of 10,000 square meters.

Q7: How can I verify your company’s strength?

We offer two convenient ways for you to assess our company’s capabilities:

We can arrange a video tour of our factory, allowing you to remotely view our production environment and facilities.
We warmly welcome you to visit our factory in person for an on-site inspection.

Q8: What type of company are you?

We are Jinan Constant Storage Machinery Manufacturing Co., Ltd., a high-tech enterprise that integrates research and development, production, sales, installation, and after-sales service. Our core product range includes intelligent sheet metal material warehouses, drawer-type sheet metal shelves, telescopic cantilever shelves, servo swing arm manipulators, gantry loading and unloading manipulators, fully automatic loading and unloading systems, and heavy-duty sheet metal and pipe storage shelves. Equipped with a professional technical team and advanced production equipment, we are committed to providing high-quality, high-performance mechanical products and customized solutions to customers around the world.
