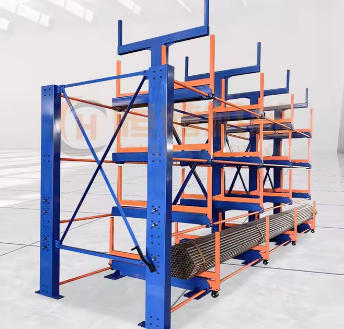

Cantilever steel bar tubing & pipe storage racks

Heavy Duty Cantilever Racking

Operational Bottlenecks in Traditional Storage‌

‌Material access inefficiency‌:
- 40% of production time lost in material retrieval (Industry Benchmark 2025)
- 15-30% increase in labor costs for manual handling
‌Safety risks‌:
- 23% higher accident rate (OSHA 2024) with floor-stacked materials
- Material damage rates up to 12% due to repeated handling

Category Heavy Duty Cantilever Racking System Tag Heavy Duty Cantilever Racking

Herochu Heavy Duty Cantilever Racking Systems: Engineering Solutions for Industrial Storage Challenges‌

‌1. Industrial Storage Challenges & System Selection‌

‌1.1 Operational Bottlenecks in Traditional Storage‌

‌Material access inefficiency‌:
- 40% of production time lost in material retrieval (Industry Benchmark 2025)
- 15-30% increase in labor costs for manual handling
‌Safety risks‌:
- 23% higher accident rate (OSHA 2024) with floor-stacked materials
- Material damage rates up to 12% due to repeated handling

‌1.2 System Selection Criteria‌

Parameter	Cantilever Racks	Drawer Racks
‌Material Diversity‌	Low (LIFO)	High (FIFO)
‌Access Frequency‌	Infrequent	Frequent
‌Space Efficiency‌	60% utilization	85%+ utilization

‌2. Herochu Cantilever Rack Technical Specifications‌

‌2.1 Structural Engineering‌

‌Column design‌:
- 12mm thick steel columns with 3mm galvanized coating
- 5° cantilever angle for load distribution
‌Arm specifications‌:
- 2000-6000mm length options
- 3T/5T capacity per arm (tested to 150% load)

‌2.2 Performance Parameters‌

Model	Arm Length	Max Load	Layers	Space Savings
HC-CR2015-62	2000mm	6,000kg	6	60%
HC-CR3015-65	3000mm	12,000kg	6	80%
HC-CR6020-65	6000mm	18,000kg	6	85%

‌3. Operational Advantages‌

‌3.1 Bulk Material Handling‌

‌Pallet compatibility‌:
- Standard Euro pallet support (1200×800mm)
- 3-second forklift access per pallet
‌Bundle storage‌:
- Up to 5m bundle length support
- Non-marring rubber arm protectors

‌3.2 Safety Enhancements‌

‌Anti-collapse design‌:
- Diagonal bracing at 45° angle
- 200kg/m² seismic rating
‌Ergonomic features‌:
- 1.5m safe access zone
- High-visibility load indicators

‌4. Implementation Guidelines‌

‌4.1 Installation Protocol‌

‌Foundation preparation‌:
- 150mm concrete slab with 20MPa strength
- Laser-leveled anchor bolt placement
‌Assembly sequence‌:
- Column → Horizontal brace → Arm → Safety pin

‌4.2 Maintenance Requirements‌

‌Quarterly inspections‌:
- Torque check (50Nm minimum)
- Corrosion assessment (salt spray test)
‌Annual load testing‌:
- 125% rated capacity validation

‌5. Comparative Analysis‌

‌5.1 When to Choose Cantilever Racks‌

‌Ideal for‌:
- Single-material bulk storage
- Low-frequency access operations
- Long-term storage of uniform batches

‌5.2 Limitations‌

‌Not recommended for‌:
- Multi-specification job shops
- Just-in-time production environments
- High-value surface-sensitive materials

‌6. Compliance & Certification‌

‌Structural certifications‌:
- EN 15512:2023 (EU)
- ANSI MH29.1-2024 (US)
‌Material traceability‌:
- Batch-specific steel documentation
- Welding procedure qualification records
