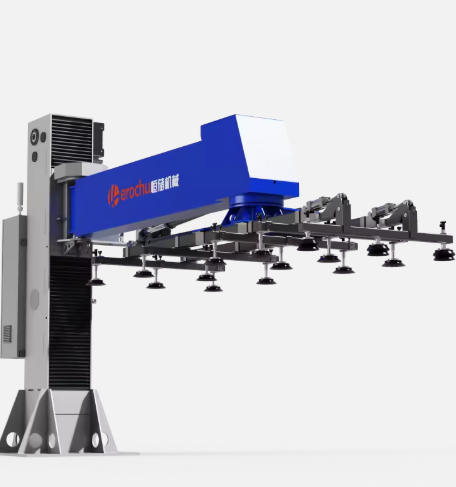

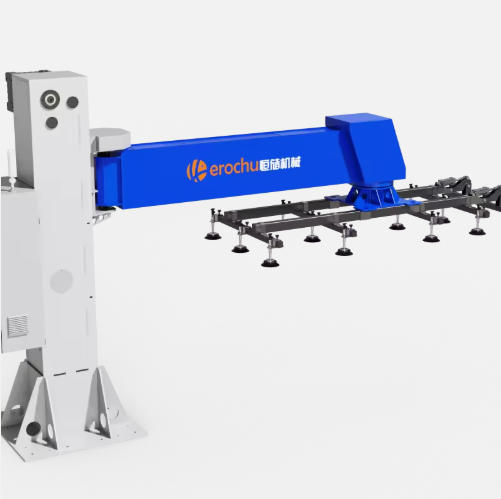

Large Metal Sheet Vacuum Lifter

For industrial environments requiring precise metal sheet handling, our vacuum lifters deliver:

Unmatched Precision: ±0.5mm positioning accuracy for laser cutting applications
Dual Operational Modes: Horizontal transport or 90° vertical flipping with electric control
Smart Safety Features: Real-time vacuum monitoring with audible/visual alarms

Herochu Large Metal Sheet Vacuum Lifter: The Smart Choice for Heavy-Duty Handling

CE/ISO 9001 Certified | 300-1000kg Capacity | Customizable Solutions

Why This Product Stands Out

For industrial environments requiring precise metal sheet handling, our vacuum lifters deliver:

Unmatched Precision: ±0.5mm positioning accuracy for laser cutting applications
Dual Operational Modes: Horizontal transport or 90° vertical flipping with electric control
Smart Safety Features: Real-time vacuum monitoring with audible/visual alarms

Key Technical Specifications

Model	Max Weight	Plate Thickness	Key Applications
HC-PR3015-300	300kg	8mm	Aluminum sheet processing
HC-PR4020-500	500kg	12mm	Stainless steel fabrication
HC-PR3015-1000	1000kg	20mm	Shipbuilding & heavy construction

Core System Components

Vacuum Power Unit
- German-engineered oil-free rotary vane pumps (10,000hr MTBF)
- 380-440V AC 50/60Hz compatible

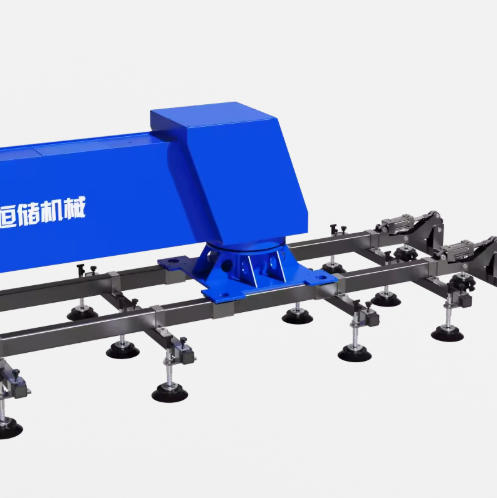

Adjustable Frame System
- X/Y axis adjustment (±50mm) for various sheet sizes
- Quick-release suction cups (200-250mm diameter)
Safety Mechanisms
- ATEX-certified for explosive environments
- Emergency pneumatic release system

Operational Benefits

Increased Productivity: 60% faster cycle times vs manual handling
Space Optimization: Vertical stacking capability for warehouses
Reduced Damage: Scratch-free material handling

Applications Across Industries

Automotive: Blanking press feeding
Aerospace: Titanium alloy panel transfer
Renewable Energy: Solar frame handling

Why Choose Herochu?

✔ 20+ Years Manufacturing Expertise
✔ Custom 3D Layout Design
✔ Global Technical Support

Pricing starts at $2,990 – Contact us for a free consultation!

Q1: What steps should I take to start the procurement process?

You may get in touch with our backend technical staff first. Based on your specific parameters, we will formulate a suitable technical solution and provide a quotation. Alternatively, you can leave your contact details—such as WhatsApp, WeChat, or email address—and our professional sales team will reach out to you proactively.

Q2: How can I inform you of my need for suitable shelves?

You can share key information with us, including the type of items you plan to store on the shelves, the dimensions of those items, the quantity of shelves required, and any other specific details you have. With this information, we will develop a professional solution tailored to your needs. If you prefer, you can also leave your contact information, and our specialized team will contact you to address your questions.

Q3: Should I choose a loading robotic arm or an integrated loading and unloading system?

To determine the right option, two key factors need to be considered first:

The table size of your laser cutting machine must meet the matching requirements for the equipment.
We need to know your specific loading method—whether it is a board rack, exchange platform, or material warehouse.

For a more accurate recommendation based on your specific needs, please leave your contact information, and we will provide targeted service.

Q4: Do you offer on-site installation and debugging services?

Yes, we do. We can dispatch professional technicians to your factory to carry out on-site installation and debugging of the robotic arm, and we will continue working until the equipment completes a successful trial operation. Our team has provided such services in many countries, including South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, and Mexico.

Q5: What measures do you take to ensure product quality?

We have a comprehensive quality assurance system, supported by the following key measures:

A team of over 40 technical engineers, with professional mechanical engineers responsible for debugging equipment and resolving any technical concerns.
A dedicated quality inspection department that strictly adheres to ISO9001 quality standards, ensuring all products meet the required quality specifications.
Professional CE certification, which guarantees smooth export procedures for our products to global markets.
Mandatory load testing for all equipment before shipment, ensuring the structural safety and operational stability of each product.

Q6: Where is your factory situated?

Our factory is located in Jinan, Shandong Province, China, specifically at No. 10 Industrial Park, Jiyang Street. It features a modern, standard workshop covering an area of 10,000 square meters.

Q7: How can I verify your company’s strength?

We offer two convenient ways for you to assess our company’s capabilities:

We can arrange a video tour of our factory, allowing you to remotely view our production environment and facilities.
We warmly welcome you to visit our factory in person for an on-site inspection.

Q8: What type of company are you?

We are Jinan Constant Storage Machinery Manufacturing Co., Ltd., a high-tech enterprise that integrates research and development, production, sales, installation, and after-sales service. Our core product range includes intelligent sheet metal material warehouses, drawer-type sheet metal shelves, telescopic cantilever shelves, servo swing arm manipulators, gantry loading and unloading manipulators, fully automatic loading and unloading systems, and heavy-duty sheet metal and pipe storage shelves. Equipped with a professional technical team and advanced production equipment, we are committed to providing high-quality, high-performance mechanical products and customized solutions to customers around the world.
