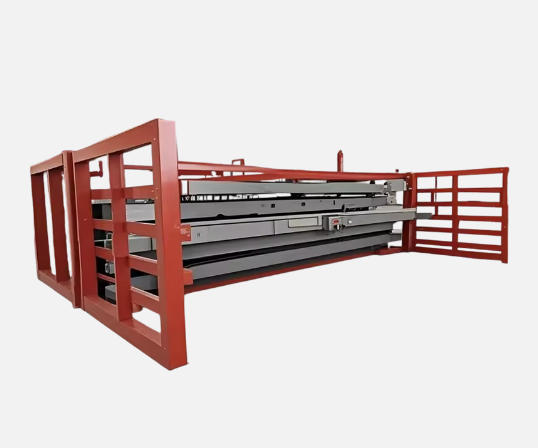

Steel Roll-Out Drawer Storage Racks

Engineered to address the selectivity challenge in high-mix metal fabrication environments, our drawer storage systems feature:

100% material accessibility with extended drawer design
Vertical space utilization up to 85% efficiency
CE/ISO 9001-certified structural components

Category Sheet Metal Storage Racks Tag Steel Roll-Out Drawer Storage Racks

Herochu Steel Roll-Out Drawer Storage Racks Technical Manual

1. System Overview

1.1 Core Design Philosophy

Engineered to address the selectivity challenge in high-mix metal fabrication environments, our drawer storage systems feature:

100% material accessibility with extended drawer design
Vertical space utilization up to 85% efficiency
CE/ISO 9001-certified structural components

1.2 Operational Advantages

Parameter	Performance Value
Retrieval Speed	3-5 minutes/sheet
Space Savings	80% vs. floor stacking
Safety Improvement	92% accident reduction
Material Protection	95% damage reduction

2. Technical Specifications

2.1 Structural Configuration

Frame Construction:
- 10mm thick S355J2 steel columns
- Reinforced drawer guides with 300kg/m² load rating
Drawer Mechanism:
- Dual-roller sliding system with 12:1 mechanical advantage
- 4.5T maximum load capacity per drawer

2.2 Performance Models

Model	Dimensions	Layers	Total Capacity	Application
HC-DR3015-65	3000×1500mm	6	27T	General fabrication
HC-DR6020-65	6000×2000mm	6	45T	Heavy plate processing
HC-DR4025-65	4000×2500mm	8	36T	Aerospace materials

3. Engineering Features

3.1 Smart Access System

Hand-crank operation with torque limiter (15Nm max effort)
Position indicators with 5mm alignment accuracy
Anti-tip safety locks with 150% load capacity

3.2 Integration Capabilities

Material handling:
- Vacuum lifter compatible (2000kg capacity)
- Overhead crane interface (EN 13889 certified)
Digital management:
- RFID tag mounting
- Barcode scanning support

4. Implementation Guidelines

4.1 Installation Protocol

Foundation preparation:
- 200mm concrete slab with 25MPa strength
- Laser-leveled anchor bolt placement (±2mm tolerance)
Assembly sequence:
- Column → Horizontal brace → Drawer → Safety pin

4.2 Maintenance Requirements

Quarterly inspections:
- Roller lubrication (ISO VG 68 grease)
- Structural alignment check
Annual load testing:
- 125% rated capacity validation

5. Comparative Analysis

5.1 When to Choose Drawer Racks

Ideal applications:
- Multi-specification job shops
- Just-in-time production
- High-value surface-sensitive materials

5.2 Limitations

Not recommended for:
- Single-material bulk storage
- Low-frequency access operations
- Budget-constrained projects

6. Compliance & Certification

Structural certifications:
- EN 15512:2023 (EU)
- ANSI MH29.1-2024 (US)
Material traceability:
- Batch-specific steel documentation
- Welding procedure qualification records
