Transforming Palletized Sheet Metal Storage: A Case Study in Horizontal Storage Efficiency
A prominent U.S. manufacturing facility recently confronted a significant logistical challenge that will resonate with many industrial operations. Their task was to store a large inventory of 3000×1500mm steel plates, which were consistently handled on standardized pallets. The existing storage method, a combination of standard shelving and floor stacking, was creating substantial inefficiencies. It consumed an excessive amount of valuable floor space, posed safety risks during material retrieval, and slowed down production cycles as workers struggled to access specific plates. The primary obstacle was the integration of the pallet itself into the storage equation. The combined height of the pallet and the steel plate stack measured 210mm, a dimension that conventional racking systems could not accommodate efficiently, leading to massive wasted vertical space. The plant’s engineering team established a clear set of non-negotiable requirements for a new solution, focusing on seamless pallet integration, manual operation for reliability, a heavy-duty 1,000 kg capacity per layer, and a compact total height under 2,000mm to fit within their facility’s constraints.

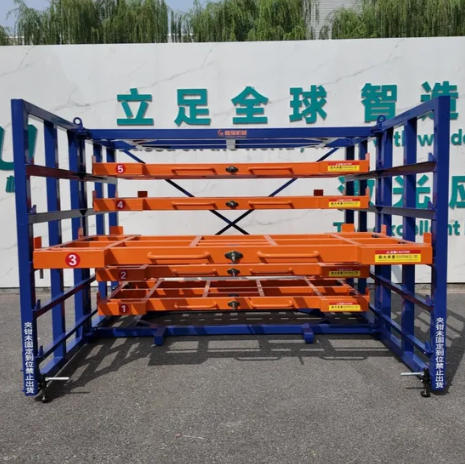

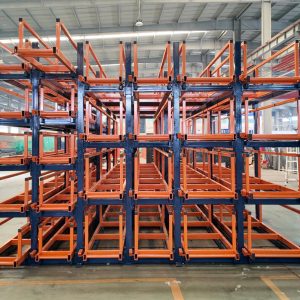

Herochu’s response was to engineer a purpose-built Heavy-Duty Horizontal Storage Metal Rack, a system designed from the ground up to address the unique demands of palletized sheet metal. This was not an adaptation of an existing product but a bespoke solution born from a detailed analysis of the client’s workflow. The objective was to create a storage system that functioned as an active component of the material handling process, rather than a passive repository. The resulting design prioritized three core principles: flawless integration with palletized loads, uncompromising structural integrity for heavy weights, and enhanced operational efficiency to accelerate workflow. The solution had to be robust enough to handle a total capacity of five tons while being precise enough to maximize every millimeter of available vertical space.
Engineered for Palletized Workflow Integration
The cornerstone of this horizontal storage metal rack’s effectiveness is its precise dimensional engineering. The system was configured with a critical drawer clearance of 250mm. This specific measurement provides the essential 40mm of overhead clearance needed to effortlessly load and unload the 210mm palletized units, eliminating the friction and potential damage caused by tight tolerances. The total system height was meticulously calculated to reach exactly 2000mm, ensuring compatibility with the facility’s clearances while accommodating five full layers of storage. Ergonomic considerations were paramount; the pull-out handles are positioned at an accessible 1577mm height, allowing for comfortable operation without straining. This thoughtful design transforms the simple act of retrieving a pallet from a cumbersome task into a smooth, single-person operation.
Structural Integrity and Safety Mechanisms
When dealing with loads exceeding 2,200 lbs per drawer, structural resilience is not a feature—it is an absolute necessity. The Herochu rack incorporates a multi-faceted reinforcement system to guarantee long-term reliability and safety. The frame is constructed with pre-engineered components that include triangular reinforcement joints at all critical stress points, effectively distributing the immense load and preventing frame deflection. A particularly innovative feature is the T-track anti-derailment system for the drawers. This mechanism ensures the drawers remain perfectly aligned on their tracks even under full load, preventing any risk of jamming or accidental disengagement. The drawers glide on dual-bearing rollers that are rigorously tested for over 10,000 operational cycles, demonstrating a commitment to durability that exceeds typical industrial standards. In adherence to our CE, EU, and ISO 9001 certified manufacturing processes, all load-bearing elements are engineered with a 1.5x safety factor, providing a significant margin of safety beyond the rated capacity.
Operational Advantages That Drive Productivity

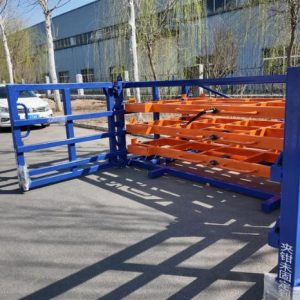

The true value of this horizontal storage metal rack is realized in its day-to-day impact on operational workflow. The full-extension drawer design is a pivotal advantage. It allows overhead cranes and vacuum lifters complete and unobstructed access to the entire pallet, meaning materials can be lifted directly from the drawer without manual repositioning. This feature alone can reduce retrieval time by more than half. The drawers are designed to open smoothly to a 40-degree angle, optimizing the access space required within the aisle. For installation and potential relocation, integrated lifting points are built into the frame, allowing the entire unit to be moved safely using standard lifting equipment. Furthermore, all leading edges are chamfered, facilitating smooth pallet movement during the loading process and preventing damage to both the pallet and the rack.
The operational benefits translate into tangible business outcomes. By securely storing five fully loaded pallets within a compact two-meter vertical footprint, this system can improve storage density by over 30% compared to conventional cantilever or wide-span shelving. This space reclamation directly translates into a more organized workshop and freed-up floor space for other critical operations. Safety is inherently enhanced through features like visual load indicators, automatic drawer position locks that prevent accidental closure, and an overload protection design that safeguards against improper use.
This Heavy-Duty Horizontal Storage Metal Rack is ideally suited for a wide range of industrial environments, including steel service centers that manage palletized inventory, automotive component manufacturers, and large-scale metal distribution warehouses. Any facility that utilizes a standardized pallet handling system can achieve a dramatic improvement in storage efficiency and workflow productivity. Customizable to your specific workshop requirements and starting at an accessible investment of $3,680, this Herochu solution represents a strategic upgrade that pays for itself through reclaimed space, enhanced safety, and accelerated material handling.
