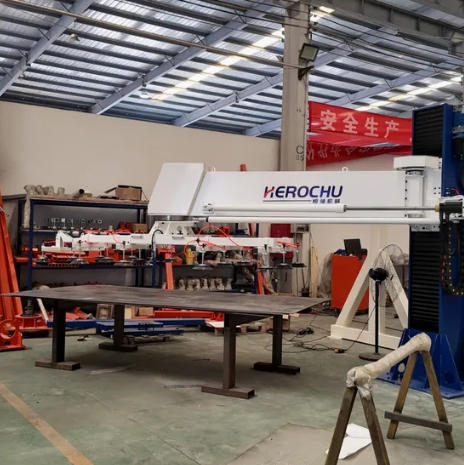

Cantilever Pneumatic Arm Manipulator

Herochu Cantilever Pneumatic Arm Manipulator: Redefining Precision and Efficiency in Material Handling

In the modern industrial landscape, efficiency, safety, and precision are not merely advantages—they are fundamental requirements for maintaining a competitive edge. The handling of large-format, heavy materials, particularly sheets and plates, presents a significant operational challenge. Manual methods are not only slow and labor-intensive but also pose considerable risks to both personnel and valuable materials. It is within this critical context that the Herochu Cantilever Pneumatic Arm Manipulator establishes a new standard for automated material handling solutions.

This sophisticated piece of engineering is far more than a simple lifting device; it is a fully integrated system designed to seamlessly integrate into your production workflow. Specifically engineered for applications such as laser cutting, punching, and bending centers, our manipulator transforms cumbersome loading and unloading tasks into a smooth, automated, and highly reliable process. By leveraging a combination of robust pneumatic power and precise electric control, the Herochu manipulator delivers unparalleled performance, starting at an accessible investment of $1,299.

Uncompromising Performance and Configurable Durability

The Herochu Cantilever Pneumatic Arm Manipulator is built to withstand the rigors of a demanding workshop environment. We offer a range of configurations to precisely match your specific material requirements, ensuring you invest in a solution that provides optimal performance without unnecessary overhead. Each unit is backed by CE, EU, and ISO 9001 certifications, a testament to our unwavering commitment to safety, quality, and international standards.

Our product line is structured to accommodate a diverse spectrum of operational needs:

• Model for 1-8mm Plate Thickness: Ideal for lighter materials, this model handles a maximum plate weight of 300KG, with a standard format of 4000*1500mm.

• Model for 1-12mm Plate Thickness: A versatile mid-range option capable of managing plates up to 500KG, maintaining the same large 4000*1500mm format capacity.

• Model for 1-20mm Plate Thickness: Our heavy-duty solution, engineered for the most challenging applications, with a formidable capacity of 1000KG while still accommodating the standard 4000*1500mm format.

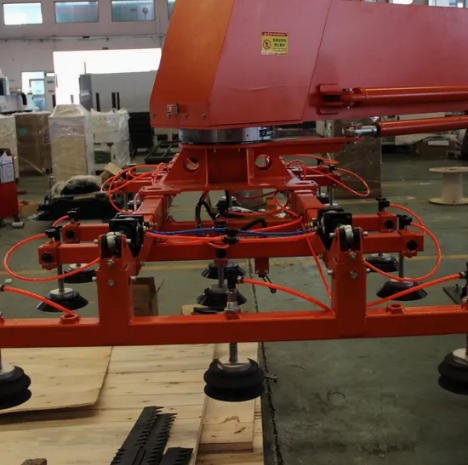

Across all models, the minimum feeding format remains a consistent 1250*1250mm, and each is equipped with a reliable system of eight suction cups, powered by a hybrid Pneumatic/Electric system for optimal grip and control.

Core Engineering Advantages

1. Maximized Spatial Efficiency Through Intelligent Cantilever Design

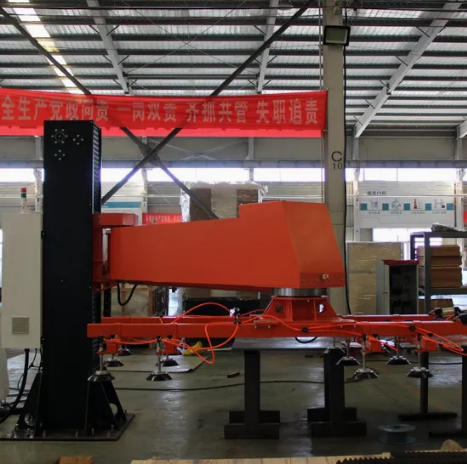

A primary differentiator of the Herochu manipulator is its innovative cantilever retractable design. Unlike traditional gantry systems that require extensive floor space and clear overhead room, the cantilever configuration offers exceptional flexibility. The arm can be adjusted to accommodate different material lengths, making full use of every inch of available space. This design is particularly advantageous for handling long-size materials such as metal profiles, pipes, and timber, effectively eliminating the spatial waste associated with fixed-size traditional equipment. This allows for a more compact workshop layout, freeing up valuable square footage for other critical operations.

2. Streamlining Production with Automated Operating Processes
The integration of a laser cutting and loading machine represents a significant leap towards full automation. The Herochu manipulator enables continuous, unattended loading operations, dramatically reducing the time consumed in the loading linkage. This creates a more fluent and efficient production rhythm, significantly increasing output per unit of time. For businesses facing the pressures of large-scale production runs or tight deadlines for urgent orders, this automation is transformative. It minimizes bottlenecks and ensures that your high-value laser cutting or processing machinery operates at peak utilization, maximizing your return on investment.

3. Versatility to Meet Diverse Material Handling Needs
The utility of the Herochu Cantilever Manipulator extends across a wide range of materials and industries. Whether your workshop processes metals, composites, wood, or plastics, this system is engineered to cope effortlessly. The intelligent pneumatic system and customizable suction cup arrangement ensure stable and efficient loading operations for various sheet and pipe profiles. This adaptability makes it an invaluable asset not only in metal fabrication but also in woodworking, plastic manufacturing, and aerospace composites processing.

4. Substantial Reduction in Operational Expenditure
One of the most compelling returns on investment is the dramatic reduction in labor costs and associated risks. The manipulator reliably replaces manual labor in performing heavy, repetitive, and physically demanding tasks. This reduces your enterprise’s reliance on strenuous manpower, leading to direct savings on labor expenses. Furthermore, it mitigates the risk of workplace injuries related to musculoskeletal disorders, enhances overall workshop safety, and protects materials from damage that can occur during manual handling, thereby reducing waste and improving quality control.

Technical Insight: The Role of a Laser Cutting Loading Machine

A laser cutting loading machine, such as the Herochu Cantilever Manipulator, serves as critical automated auxiliary equipment within the laser cutting ecosystem. Its primary function is the automated transportation of raw material to the laser cutting machine’s work table, where precise cutting operations are subsequently performed.

The system operates on a foundation of mechanical precision. Utilizing a combination of robust mechanical transmission and reliable pneumatic or vacuum adsorption technology, it executes the gripping, carrying, and precise placement of materials. Guided by pre-programmed instructions, the equipment can automatically identify the position, size, and shape of the material. Through its sophisticated control system and mechanical arm, it then conveys the material to the exact designated position on the laser cutting equipment, achieving precise positioning that is essential for high-tolerance cutting. This automated preparation is fundamental to ensuring the accuracy and repeatability of the entire laser cutting process.

A Strategic Investment for Future Growth

The Herochu Cantilever Pneumatic Arm Manipulator is more than a piece of machinery; it is a strategic partner in your pursuit of operational excellence. It represents a commitment to safety, a dedication to efficiency, and an investment in the future scalability of your business. By automating one of the most challenging aspects of material handling, you unlock new levels of productivity and positioning your workshop for sustained growth.

To discover how a customizable Herochu Cantilever Pneumatic Arm Manipulator can be integrated into your specific operational environment, we invite you to contact our engineering team for a comprehensive consultation. Let us help you build a smarter, safer, and more efficient workshop.
