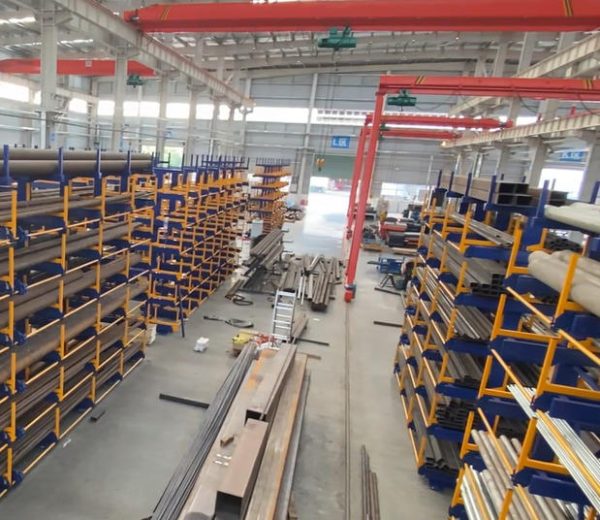

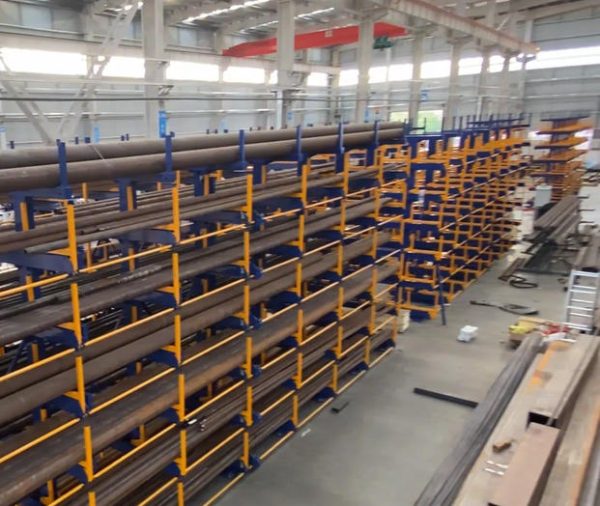

Heavy Duty Telescopic Cantilever Storage System Metal Pipe Storage System Shelves

Heavy Duty Telescopic Cantilever Storage System Metal Pipe Storage System Shelves

Metal pipes and long loads don’t just require storage—they require a system that can handle their weight without compromising safety. Herochu’s Heavy Duty Telescopic Cantilever Storage System is engineered to exceed industrial standards, with every component—from uprights to telescopic arms—tested to meet CE, EU, and ISO 9001 requirements. This isn’t just compliance; it’s a guarantee that the system can support heavy loads (up to 6,000 lbs per arm, depending on configuration) and withstand the daily wear of warehouse operations. For facilities in regulated industries—like oil and gas, construction, or metal fabrication—these certifications eliminate liability risks and ensure both workers and inventory are protected.

Specification

Model	HC-G6053S	HC-G6053D	HC-G9055S	HC-G9055D
Load (single layer)	3t	3t	5t	3t
Tube Length	6m	6m	9m	9m
Layers	4+1
Available dimensions of compartment	Depth * Height: 600×400,600×600,800×600 mm
Overall dimensions/mm	6435x3340x1550	6435x3340x1750	9435x3340x1550	9435x3340x1750
Cantilever movement mode	Single-side power-assisted type	Double-side power-assisted type	Single-side power-assisted type	Double-side power-assisted type
Height from the ground	330mm
Top floor height from ground	3040mm		3840mm
Column spacing	1800mm		1500mm
Note: Both manual and electric can be customized, and the load-bearing capacity, length, number of layers, and layer height can be customized.

Herochu Heavy Duty Telescopic Cantilever Storage System: Industrial-Grade Metal Pipe Storage Solution

For warehouses, construction yards, and manufacturing facilities tasked with storing metal pipes, long profiles, or bulky non-palletisable loads, generic storage racks fall short. These items—often irregularly shaped, heavy, or extra-long—demand a system that balances strength, accessibility, and space efficiency. Herochu’s Heavy Duty Telescopic Cantilever Storage System is built to meet this need, merging rugged durability with flexible design to serve as a dedicated Metal Pipe Storage System. Starting at $3,660 and backed by CE, EU, and ISO 9001 certifications, this system eliminates the frustration of disorganized, space-wasting storage—turning cluttered floors into streamlined, safe, and accessible inventory zones.

Certified Strength for Heavy-Duty Use

The system’s durability starts with its materials: cold-rolled steel, chosen for its excellent corrosion resistance, rust-proof properties, and structural stability. Unlike cheaper racks that warp or weaken over time, Herochu’s steel components are manufactured using advanced automatic production technology—ensuring consistent quality across every unit. Whether you’re storing galvanized metal pipes, steel profiles, or heavy wooden boards, this system is built to last for decades, not years.

Why Telescopic Cantilever Design Beats Generic Racks

Traditional pallet racks or shelving systems struggle with metal pipes and long loads. Pallet racks require awkwardly securing pipes to pallets (risking damage or slippage), while standard shelving has posts that block access to stored items. Herochu’s telescopic cantilever design solves both problems:

Telescopic Arms for Easy Access: Unlike fixed cantilever racks, Herochu’s telescopic arms pull out smoothly—letting you reach deep-stored pipes without moving front loads. This cuts retrieval time by up to 50%: a worker no longer needs to shift 10 pipes to get to the one at the back; they simply extend the arm and pull the required pipe forward. For facilities with high inventory turnover, this efficiency translates to faster order fulfillment and reduced labor costs.

No Obstructing Posts: Cantilever racks feature uprights only along the back, with no front posts to block access. This means you can store extra-long pipes (up to 20 feet or more) without cutting them down or awkwardly angling them. It also simplifies loading and unloading with forklifts or cranes—no more maneuvering around narrow gaps between posts.

Modular Bolt-Together Assembly: The system uses welded components that bolt together easily, with all required hardware included. Uprights, arms, and braces are sold separately, so you only buy what you need for your specific application. For example, if you need to store 10-foot metal pipes, you can select shorter arms; if you’re expanding later, you can add more uprights or longer arms without replacing the entire system. This modularity also makes assembly straightforward—no specialized tools or expertise required, saving time on installation.

Space Optimization: Maximize Your Warehouse Without Expansion

Floor space is one of the most valuable resources in any warehouse, and metal pipes are notorious for wasting it. Herochu’s Heavy Duty Telescopic Cantilever Storage System turns unused space into usable capacity in three key ways:

Vertical Storage: The system’s tall uprights (available in heights up to 12 feet) let you stack loads vertically, turning 100 square feet of floor space into enough storage for 50+ metal pipes (depending on size). Compared to horizontal floor storage, this increases capacity by 300–400%—critical for facilities with limited square footage.

Mobile Base Option: For even greater space efficiency, the system can be installed on mobile bases. This lets you compact racking units when not in use—reducing the aisle space needed between racks by up to 60%. When you need access to a specific unit, simply roll it out; when done, push it back to free up aisle space. This is a game-changer for small warehouses or facilities that store seasonal pipe inventory.

Rack-Supported Warehouses: For large-scale operations, the system can be expanded with a roof to create a full rack-supported warehouse. This eliminates the need for separate building structures—using the racking itself as the framework for the warehouse. It’s a cost-effective way to add storage space without constructing a new facility, and it’s fully customizable to fit your warehouse’s layout.

Safety Features to Protect Workers and Inventory

Storing heavy metal pipes comes with inherent risks—dropped loads, unstable racks, or damaged inventory. Herochu’s system incorporates multiple safety features to mitigate these risks:

Vertical Bracing and Stops: Every upright is reinforced with vertical bracing to prevent wobbling, even when fully loaded. The telescopic arms also include built-in stops to keep pipes from sliding off the ends—critical when loading or unloading.

Corrosion-Resistant Finish: The cold-rolled steel is treated with a rust-proof coating, ensuring the system remains stable even in damp or outdoor environments (like construction yards). This prevents rust from weakening components and reduces the risk of rack failure.

Frequent Inspection Guidelines: While the system is built for durability, Herochu recommends regular inspections to ensure safe operation. The end user is responsible for final testing and inspection after assembly—ensuring the system is configured correctly for their specific load requirements. This proactive approach to safety reduces the risk of accidents and extends the system’s lifespan.

Applications: More Than Just Metal Pipe Storage

While Herochu’s Heavy Duty Telescopic Cantilever Storage System is designed as a Metal Pipe Storage System, its versatility makes it ideal for a range of bulky, non-palletisable loads:

Construction Materials: Store lumber, drywall, or steel beams—items that are too long or irregular for pallet racks.

Industrial Rolls: Handle large rolls of carpet, fabric, or plastic sheeting, with telescopic arms that let you unroll material directly from the rack.

Furniture and Appliances: Store sofas, refrigerators, or washing machines—items that risk damage if stacked on pallets. The cantilever design lets you store them upright or horizontally without pressure points.

Mouldings and Profiles: Keep trim, window frames, or aluminum profiles organized, with easy access to each piece (critical for custom construction projects).

This versatility makes the system a long-term investment—you can repurpose it as your storage needs change, without buying new racks.

Full Customization: Built for Your Workshop

No two warehouses store metal pipes the same way—and Herochu’s system doesn’t force you to compromise. Every aspect can be customized to fit your unique needs:

Load Capacity: Choose arms rated for 2,000 lbs, 4,000 lbs, or 6,000 lbs per arm, depending on the weight of your pipes.

Arm Length: Select arms from 3 feet to 10 feet long, to fit pipes of any length (custom lengths available for extra-long loads).

Upright Height: Opt for uprights from 6 feet to 12 feet tall, to maximize vertical storage space.

Color: Pick from industrial gray, safety orange, or custom colors to match your warehouse’s branding or safety protocols.

Whether you’re a small plumbing supply shop storing 50 metal pipes or a large construction firm managing 500+ pipes, Herochu’s team works with you to design a system that fits your budget, space, and workflow.

Why Herochu for Heavy-Duty Storage?

In a market flooded with generic storage racks, Herochu’s Heavy Duty Telescopic Cantilever Storage System stands out for three key reasons:

Specialization: It’s built for heavy, long loads—unlike generic cantilever racks that struggle with metal pipes or extra-heavy items.

Flexibility: Modular design and telescopic arms let you adapt the system to changing needs, from small workshops to large warehouses.

Value: Starting at $3,660, it’s an affordable investment that pays for itself through space savings, reduced labor costs, and minimized inventory damage.

Don’t let disorganized metal pipe storage slow your operation down. Herochu’s Heavy Duty Telescopic Cantilever Storage System turns chaos into control—freeing up space, improving safety, and making every load accessible in seconds. Contact Herochu today to discuss your customization needs and find out how this system can transform your warehouse.

Q1: What steps should I take to start the procurement process?

You may get in touch with our backend technical staff first. Based on your specific parameters, we will formulate a suitable technical solution and provide a quotation. Alternatively, you can leave your contact details—such as WhatsApp, WeChat, or email address—and our professional sales team will reach out to you proactively.

Q2: How can I inform you of my need for suitable shelves?

You can share key information with us, including the type of items you plan to store on the shelves, the dimensions of those items, the quantity of shelves required, and any other specific details you have. With this information, we will develop a professional solution tailored to your needs. If you prefer, you can also leave your contact information, and our specialized team will contact you to address your questions.

Q3: Should I choose a loading robotic arm or an integrated loading and unloading system?

To determine the right option, two key factors need to be considered first:

The table size of your laser cutting machine must meet the matching requirements for the equipment.
We need to know your specific loading method—whether it is a board rack, exchange platform, or material warehouse.

For a more accurate recommendation based on your specific needs, please leave your contact information, and we will provide targeted service.

Q4: Do you offer on-site installation and debugging services?

Yes, we do. We can dispatch professional technicians to your factory to carry out on-site installation and debugging of the robotic arm, and we will continue working until the equipment completes a successful trial operation. Our team has provided such services in many countries, including South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, and Mexico.

Q5: What measures do you take to ensure product quality?

We have a comprehensive quality assurance system, supported by the following key measures:

A team of over 40 technical engineers, with professional mechanical engineers responsible for debugging equipment and resolving any technical concerns.
A dedicated quality inspection department that strictly adheres to ISO9001 quality standards, ensuring all products meet the required quality specifications.
Professional CE certification, which guarantees smooth export procedures for our products to global markets.
Mandatory load testing for all equipment before shipment, ensuring the structural safety and operational stability of each product.

Q6: Where is your factory situated?

Our factory is located in Jinan, Shandong Province, China, specifically at No. 10 Industrial Park, Jiyang Street. It features a modern, standard workshop covering an area of 10,000 square meters.

Q7: How can I verify your company’s strength?

We offer two convenient ways for you to assess our company’s capabilities:

We can arrange a video tour of our factory, allowing you to remotely view our production environment and facilities.
We warmly welcome you to visit our factory in person for an on-site inspection.

Q8: What type of company are you?

We are Jinan Constant Storage Machinery Manufacturing Co., Ltd., a high-tech enterprise that integrates research and development, production, sales, installation, and after-sales service. Our core product range includes intelligent sheet metal material warehouses, drawer-type sheet metal shelves, telescopic cantilever shelves, servo swing arm manipulators, gantry loading and unloading manipulators, fully automatic loading and unloading systems, and heavy-duty sheet metal and pipe storage shelves. Equipped with a professional technical team and advanced production equipment, we are committed to providing high-quality, high-performance mechanical products and customized solutions to customers around the world.
