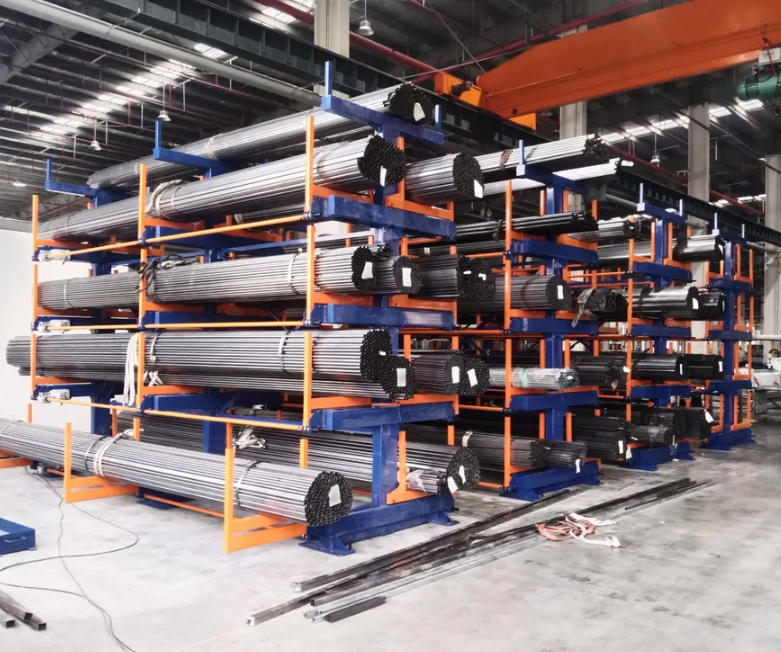

Manual telescopic heavy-duty cantilever rack

With 72% of manufacturing facilities reporting storage space shortages (2025 Industrial Survey), Herochu’s manual telescopic cantilever racks offer a groundbreaking solution. Unlike traditional fixed shelving, our innovative design:

Maximizes Vertical Space: 50% better utilization than conventional racks
Enhances Accessibility: Roll-out layers for crane/forklift compatibility
Simplifies Management: Visual labeling system for quick retrieval

Category Heavy Duty Cantilever Racking System Tag Manual telescopic heavy-duty cantilever rack

Herochu Manual Telescopic Heavy-Duty Cantilever Rack: The Space-Saving Solution for Modern Workshops

CE/ISO 9001 Certified | Custom Configurations | Starting at $2,998

The Storage Challenge in Today’s Industrial Landscape

Maximizes Vertical Space: 50% better utilization than conventional racks
Enhances Accessibility: Roll-out layers for crane/forklift compatibility
Simplifies Management: Visual labeling system for quick retrieval

Technical Specifications That Adapt to Your Needs

Parameter	Standard Model	Custom Option
Load Capacity	5T/layer	Up to 10T/layer
Arm Length	2-12m	±5% tolerance
Layers	4	3-5 configurable
Control	Manual winch	Optional motorized
Safety	ISO 13849 PLd	Anti-slip surface

All models feature powder-coated steel with 8-year corrosion warranty.

Key Features That Set Us Apart

Space-Saving Design
- Telescopic arms extend/retract in straight line
- 742mm × 3720mm compact footprint
Labor-Saving Operation
- One-person operation for 5-ton loads
- Non-slip telescopic arms for secure handling
Visual Management System
- Color-coded compartments for easy identification
- Independent labeling for each storage unit

Industry-Specific Applications

Pipe Manufacturing
- Store 12m pipes without bending
- 60% faster retrieval compared to stacked storage
Steel Processing
- 4-layer system for 20T total capacity
- Crane-compatible design for heavy loads
Automotive
- Modular arms for chassis parts
- Quick-access design for just-in-time production

2025 Technological Advancements

IoT-Ready: Optional RFID tracking for inventory management
Modular Expansion: Add layers as production scales
Ergonomic Design: Reduced operator fatigue by 40%

Case Study: Midwest Pipe Distributor

A leading distributor reduced storage costs by 55% using:

HC-7422 model with 20T capacity
4-layer system for 5000kg per layer
Color-coded visual management

From $2,998 – Configure your rack with our 3D simulation tool or request a site audit.

Q1: What steps should I take to start the procurement process?

You may get in touch with our backend technical staff first. Based on your specific parameters, we will formulate a suitable technical solution and provide a quotation. Alternatively, you can leave your contact details—such as WhatsApp, WeChat, or email address—and our professional sales team will reach out to you proactively.

Q2: How can I inform you of my need for suitable shelves?

You can share key information with us, including the type of items you plan to store on the shelves, the dimensions of those items, the quantity of shelves required, and any other specific details you have. With this information, we will develop a professional solution tailored to your needs. If you prefer, you can also leave your contact information, and our specialized team will contact you to address your questions.

Q3: Should I choose a loading robotic arm or an integrated loading and unloading system?

To determine the right option, two key factors need to be considered first:

The table size of your laser cutting machine must meet the matching requirements for the equipment.
We need to know your specific loading method—whether it is a board rack, exchange platform, or material warehouse.

For a more accurate recommendation based on your specific needs, please leave your contact information, and we will provide targeted service.

Q4: Do you offer on-site installation and debugging services?

Yes, we do. We can dispatch professional technicians to your factory to carry out on-site installation and debugging of the robotic arm, and we will continue working until the equipment completes a successful trial operation. Our team has provided such services in many countries, including South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, and Mexico.

Q5: What measures do you take to ensure product quality?

We have a comprehensive quality assurance system, supported by the following key measures:

A team of over 40 technical engineers, with professional mechanical engineers responsible for debugging equipment and resolving any technical concerns.
A dedicated quality inspection department that strictly adheres to ISO9001 quality standards, ensuring all products meet the required quality specifications.
Professional CE certification, which guarantees smooth export procedures for our products to global markets.
Mandatory load testing for all equipment before shipment, ensuring the structural safety and operational stability of each product.

Q6: Where is your factory situated?

Our factory is located in Jinan, Shandong Province, China, specifically at No. 10 Industrial Park, Jiyang Street. It features a modern, standard workshop covering an area of 10,000 square meters.

Q7: How can I verify your company’s strength?

We offer two convenient ways for you to assess our company’s capabilities:

We can arrange a video tour of our factory, allowing you to remotely view our production environment and facilities.
We warmly welcome you to visit our factory in person for an on-site inspection.

Q8: What type of company are you?

We are Jinan Constant Storage Machinery Manufacturing Co., Ltd., a high-tech enterprise that integrates research and development, production, sales, installation, and after-sales service. Our core product range includes intelligent sheet metal material warehouses, drawer-type sheet metal shelves, telescopic cantilever shelves, servo swing arm manipulators, gantry loading and unloading manipulators, fully automatic loading and unloading systems, and heavy-duty sheet metal and pipe storage shelves. Equipped with a professional technical team and advanced production equipment, we are committed to providing high-quality, high-performance mechanical products and customized solutions to customers around the world.
