Pneumatic Cantilever Manipulator Vacuum Lifter Crane

Herochu Pneumatic Cantilever Manipulator Vacuum Lifter Crane: Redefining Heavy-Duty Material Handling

In the demanding environment of modern industrial production, the movement of heavy, cumbersome, and often delicate materials like large steel plates, glass panels, and composite sheets presents a constant challenge. Traditional methods relying on manual labor, slings, and magnets are not only inefficient but also pose significant safety risks and potential for product damage. Herochu engineers a definitive solution to this fundamental constraint with our Pneumatic Cantilever Manipulator Vacuum Lifter Crane. This sophisticated system transcends conventional lifting equipment, acting as a true force multiplier that empowers a single operator to manage immense weights with pinpoint precision and effortless control. It is the culmination of advanced vacuum technology and robust mechanical design, representing a strategic investment in safety, productivity, and operational excellence, starting at $42,000.

Mastering Gravity with Advanced Vacuum Technology

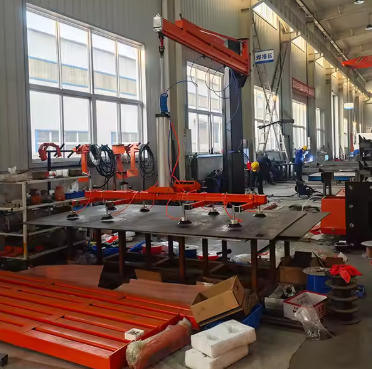

The core principle of the Herochu system is the powerful and reliable generation of suction force. When gravity and weight become constraints, this machine breaks the norm. It functions as an intelligent lifting machine, utilizing a highly efficient pneumatic system to create a powerful vacuum across specially designed sealing pads. This creates an unwavering grip on flat, non-porous surfaces, allowing several tons of material to be captured and moved as if they were weightless. The system is engineered for flawless performance with steel, aluminum, stainless steel, glass, and composite panels, eliminating the need for multiple, material-specific lifting devices. This versatility makes it an indispensable asset in metal fabrication, glass processing, and large-scale assembly workshops.

Unparalleled Precision and Flexibility in Motion

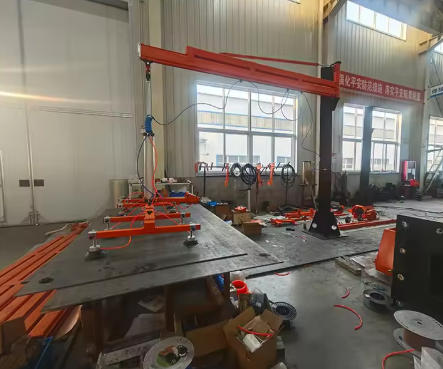

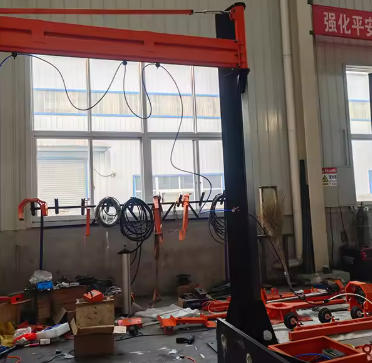

The Herochu Vacuum Lifter Crane is designed for more than just powerful lifting; it is designed for intelligent movement. The system features a robust cantilever manipulator arm that provides exceptional reach and maneuverability. With a horizontal travel of 3300mm and a vertical travel of 700mm, the machine offers a extensive working envelope, allowing operators to precisely pick and place materials from various angles and positions. The 360° flexible rotation at the end effector is a critical feature, breaking all spatial limitations. This allows operators to smoothly rotate loads to the exact required orientation, drawing perfect arcs of motion for precise positioning between machinery, storage racks, and transportation vehicles. This millimeter-level precision drastically reduces adjustment time and minimizes the risk of damage during placement.

Engineered for Absolute Safety and Reliability

Every Herochu Pneumatic Vacuum Lifter is built to the most rigorous international standards, bearing CE, UE, and ISO 9001 certifications. This commitment to safety is embedded in its electronic control core. An integrated safety protection system continuously monitors the adsorption status in real-time, measuring vacuum levels to ensure a secure grip before any lift is initiated. This is combined with an intelligent anti-fall warning system that provides audible and visual alerts should any irregularity be detected, ensuring that every lifting operation is as stable as a mountain. This redundant safeguarding protects both your valuable inventory and your personnel, creating a secure working environment that allows operators to work with confidence.

Transformative Operational Benefits

The implementation of this system marks a transition from cumbersome, risky manual labor to streamlined, intelligent lifting. The benefits are immediate and profound. A single operator can now perform tasks that previously required multiple workers and equipment, drastically reducing labor costs and eliminating the physical strain associated with heavy material handling. The speed and precision of movement—facilitated by the smooth chain drive transmission and intuitive controls—slash handling time, accelerating production cycles and increasing overall throughput. By replacing magnets and slings, the vacuum lifter eliminates surface scratches, pressure points, and structural stress, significantly improving product quality and reducing material waste.

Robust Construction and Clear Specifications

The HC-RP3015-500 Vacuum Lifter Crane is a substantial piece of industrial machinery, weighing 2200 kg and built from high-strength steel to guarantee longevity and unwavering performance under constant load. Its footprint is compact relative to its capability, with dimensions of 3200x900x1200mm (LWH), designed for integration into existing production lines without consuming excessive floor space. Powered by a reliable 1100-watt system, it provides consistent power for the vacuum pump and drive mechanisms. Most notably, Herochu stands behind the durability and quality of this machine with an extensive 5-year warranty, one of the most comprehensive in the industry.

A Strategic Investment for Modern Manufacturing

The Herochu Pneumatic Cantilever Manipulator Vacuum Lifter Crane is not merely a piece of equipment; it is a transformative technology that redefines the efficiency boundary of industrial transportation. It injects powerful technological momentum into modern production, ushering in a new era of efficient and safe operations. For any facility handling large sheets and plates, this system delivers a rapid return on investment through dramatic gains in productivity, safety, and product quality.

To learn more about how this system can be customized to your specific workshop layout and material handling requirements, contact a Herochu engineering specialist today. We will provide a detailed consultation to demonstrate how our vacuum lifter crane can become the cornerstone of your streamlined material flow.
