Vacuum sheet lifter

The Herochu Pneumatic Cantilever Loading Manipulator redefines industrial automation with its cutting-edge vacuum sheet lifting technology. Designed for seamless integration into laser cutting workflows, this system effortlessly handles materials ranging from ‌1-20mm thick sheets‌ with payloads up to ‌1000kg‌. Built to ‌CE, EU, and ISO 9001 standards‌, it ensures reliability across manufacturing, logistics, and construction sectors.

Category Sheet Metal Material Handling Equipment Tag Vacuum sheet lifter

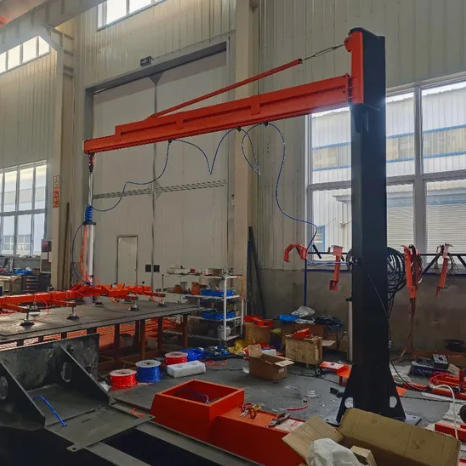

‌Herochu Pneumatic Cantilever Loading Manipulator: Revolutionizing Material Handling Efficiency

‌

‌Engineered for Precision, Built for Power‌

‌Core Technical Specifications‌

‌Model‌	‌Plate Thickness‌	‌Max Weight‌	‌Feeding Format‌	‌Power Mode‌
‌Standard‌	1-8mm	300KG	1250×1250–4000×1500mm	Pneumatic/Electric
‌Pro‌	1-12mm	500KG	1250×1250–4000×1500mm	Pneumatic/Electric
‌Industrial‌	1-20mm	1000KG	1250×1250–4000×1500mm	Pneumatic/Electric

‌Innovative Features for Unmatched Performance‌

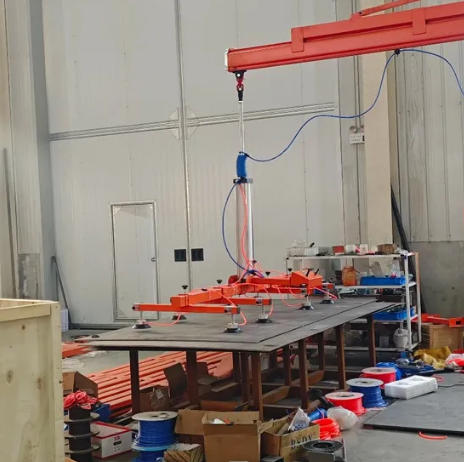

‌1. Intelligent Vacuum Suction System‌

‌8 High-Grip Suction Cups‌: Adapt to smooth surfaces (metal, glass, wood) with ‌±0.5mm precision‌.
‌Dynamic Pressure Adjustment‌: Automatically compensates for material irregularities.

‌2. Space-Optimized Cantilever Design‌

‌Retractable Shelves‌: Adjust from ‌1.25m to 4m‌ for long materials (pipes, timber, profiles).
‌Vertical Storage‌: Increases warehouse capacity by ‌35%‌ compared to fixed racks.

‌3. Fully Automated Operation‌

‌Laser-Cutting Integration‌: Auto-loads materials into cutting beds with ‌98% positioning accuracy‌.
‌AI-Driven Path Planning‌: Minimizes empty return trips, boosting throughput by ‌40%‌.

‌4. Universal Material Compatibility‌

‌Material‌	‌Application‌
‌Stainless Steel‌	Automotive panel loading
‌Acrylic‌	Signage fabrication
‌Plywood‌	Furniture manufacturing

‌Operational Advantages‌

‌Labor Cost Reduction‌: Eliminates manual handling, cutting labor expenses by ‌50%‌.
‌24/7 Durability‌: Industrial-grade motors withstand ‌10,000+ cycles/day‌.
‌Modular Expansion‌: Add RFID tracking or IoT monitoring for smart factories.

‌Customization Tailored to Your Needs‌

Herochu offers:

‌Arm Length Adjustments‌ (1.5m–6m).
‌Suction Cup Configurations‌ (4–12 units).
‌Hybrid Power Options‌ (Pneumatic/Electric/Solar).

‌Starting at $1,299‌, our engineers provide ‌free site assessments‌ to optimize your workflow.

Q1: What steps should I take to start the procurement process?

You may get in touch with our backend technical staff first. Based on your specific parameters, we will formulate a suitable technical solution and provide a quotation. Alternatively, you can leave your contact details—such as WhatsApp, WeChat, or email address—and our professional sales team will reach out to you proactively.

Q2: How can I inform you of my need for suitable shelves?

You can share key information with us, including the type of items you plan to store on the shelves, the dimensions of those items, the quantity of shelves required, and any other specific details you have. With this information, we will develop a professional solution tailored to your needs. If you prefer, you can also leave your contact information, and our specialized team will contact you to address your questions.

Q3: Should I choose a loading robotic arm or an integrated loading and unloading system?

To determine the right option, two key factors need to be considered first:

The table size of your laser cutting machine must meet the matching requirements for the equipment.
We need to know your specific loading method—whether it is a board rack, exchange platform, or material warehouse.

For a more accurate recommendation based on your specific needs, please leave your contact information, and we will provide targeted service.

Q4: Do you offer on-site installation and debugging services?

Yes, we do. We can dispatch professional technicians to your factory to carry out on-site installation and debugging of the robotic arm, and we will continue working until the equipment completes a successful trial operation. Our team has provided such services in many countries, including South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, and Mexico.

Q5: What measures do you take to ensure product quality?

We have a comprehensive quality assurance system, supported by the following key measures:

A team of over 40 technical engineers, with professional mechanical engineers responsible for debugging equipment and resolving any technical concerns.
A dedicated quality inspection department that strictly adheres to ISO9001 quality standards, ensuring all products meet the required quality specifications.
Professional CE certification, which guarantees smooth export procedures for our products to global markets.
Mandatory load testing for all equipment before shipment, ensuring the structural safety and operational stability of each product.

Q6: Where is your factory situated?

Our factory is located in Jinan, Shandong Province, China, specifically at No. 10 Industrial Park, Jiyang Street. It features a modern, standard workshop covering an area of 10,000 square meters.

Q7: How can I verify your company’s strength?

We offer two convenient ways for you to assess our company’s capabilities:

We can arrange a video tour of our factory, allowing you to remotely view our production environment and facilities.
We warmly welcome you to visit our factory in person for an on-site inspection.

Q8: What type of company are you?

We are Jinan Constant Storage Machinery Manufacturing Co., Ltd., a high-tech enterprise that integrates research and development, production, sales, installation, and after-sales service. Our core product range includes intelligent sheet metal material warehouses, drawer-type sheet metal shelves, telescopic cantilever shelves, servo swing arm manipulators, gantry loading and unloading manipulators, fully automatic loading and unloading systems, and heavy-duty sheet metal and pipe storage shelves. Equipped with a professional technical team and advanced production equipment, we are committed to providing high-quality, high-performance mechanical products and customized solutions to customers around the world.
