Workspace Sheet Storage Solution & Systems
The rack ships as one fixed base deck plus nine independent drawers, each rated at 1 000 kg and sized from 1 500 mm × 3 000 mm up to 2 000 mm × 6 000 mm. A 45 mm pitch means drawer height can be reset with four bolts if tomorrow’s mix includes thick wear plate or pre-painted HVAC blanks. Every drawer rides on sealed steel rollers with eccentric axles that compensate for wear; even after 40 000 cycles the pull force stays below 35 N, so a single technician can slide 800 kg of copper without strain. Side guides stop lateral drift to ±1 mm, protecting suction-cup alignment when the crane operator hits “raise.”
Specification
| item | value |
| Material | Steel |
| Feature | Corrosion Protection |
| Type | Attic |
| length of layers | 2.5-6m |
| Layer | 5-layer |
| Surface Treatment | Zinc coated |
| Installation | Multi-tier |
| Brand Name | Herochu |
| Model Number | WHX-001. |
Herochu Workspace Sheet Storage Solution & Systems – Turn 40 m² of Floor into 10 Tons of Instant Access, Starting at $2,280
Walk into any high-throughput laser shop at 07:00 and the story is the same: pallets of 1 mm, 2 mm, 8 mm and 20 mm crowd the gangway, the foreman is hunting for the remnant that “was here yesterday,” and the crane is tied up shuffling packages while the bed sits idle. Herochu’s Workspace Sheet Storage Solution ends that daily ritual. Built in Jinan’s 8 000 m² CE- and ISO 9001-certified plant, the ten-tier horizontal rack lets one operator locate, retrieve and load the correct sheet in under 60 seconds—without a forklift truck and without touching the edges that you later paint, bend or weld.
Ten Layers, Zero Confusion

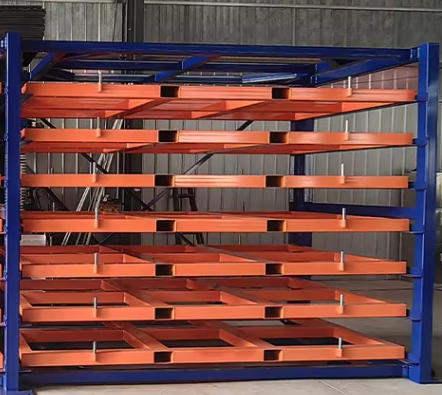

The rack ships as one fixed base deck plus nine independent drawers, each rated at 1 000 kg and sized from 1 500 mm × 3 000 mm up to 2 000 mm × 6 000 mm. A 45 mm pitch means drawer height can be reset with four bolts if tomorrow’s mix includes thick wear plate or pre-painted HVAC blanks. Every drawer rides on sealed steel rollers with eccentric axles that compensate for wear; even after 40 000 cycles the pull force stays below 35 N, so a single technician can slide 800 kg of copper without strain. Side guides stop lateral drift to ±1 mm, protecting suction-cup alignment when the crane operator hits “raise.”
The rack ships as one fixed base deck plus nine independent drawers, each rated at 1 000 kg and sized from 1 500 mm × 3 000 mm up to 2 000 mm × 6 000 mm. A 45 mm pitch means drawer height can be reset with four bolts if tomorrow’s mix includes thick wear plate or pre-painted HVAC blanks. Every drawer rides on sealed steel rollers with eccentric axles that compensate for wear; even after 40 000 cycles the pull force stays below 35 N, so a single technician can slide 800 kg of copper without strain. Side guides stop lateral drift to ±1 mm, protecting suction-cup alignment when the crane operator hits “raise.”
Crane-to-Laser Workflow, No Double Handling
Extend drawer 7, lower the vacuum beam, engage the cups, lift and retract. The sheet clears the remaining stock by 80 mm, travels directly to the shuttle table and registers against the squaring arm while the drawer closes automatically under spring assist. Average retrieval-to-cut time recorded at three Midwest fabricators: 52 seconds. Compare that to the 7–9 minutes typically lost locating, band-saw strapping and vacuum-lifting from floor bundles. In a 300-shift year that difference buys an extra 1 800 beam-on hours from a 4 kW laser—enough capacity to pay for the rack before the next tax return is filed.
Extend drawer 7, lower the vacuum beam, engage the cups, lift and retract. The sheet clears the remaining stock by 80 mm, travels directly to the shuttle table and registers against the squaring arm while the drawer closes automatically under spring assist. Average retrieval-to-cut time recorded at three Midwest fabricators: 52 seconds. Compare that to the 7–9 minutes typically lost locating, band-saw strapping and vacuum-lifting from floor bundles. In a 300-shift year that difference buys an extra 1 800 beam-on hours from a 4 kW laser—enough capacity to pay for the rack before the next tax return is filed.
Categorised Storage, Visual Inventory
Colour-coded end caps and optional barcode pockets let you dedicate tier 1 to 1 mm mild steel, tier 2 to 2 mm, tier 3 to brushed 304, tier 4 to aluminium “no PVC,” and so on. Cycle counts become a walk-by exercise; ERP systems sync in real time when the crane operator scans the pull. One Ohio job shop reduced physical inventory time from three labour days to four hours and discovered a hidden 17 t of 5 mm plate that had been written off as “floor loss.”
Colour-coded end caps and optional barcode pockets let you dedicate tier 1 to 1 mm mild steel, tier 2 to 2 mm, tier 3 to brushed 304, tier 4 to aluminium “no PVC,” and so on. Cycle counts become a walk-by exercise; ERP systems sync in real time when the crane operator scans the pull. One Ohio job shop reduced physical inventory time from three labour days to four hours and discovered a hidden 17 t of 5 mm plate that had been written off as “floor loss.”
Floor Space That Earns Its Rent
A standard ten-tier block 6 m long × 1.55 m deep stores 60 t of mixed gauges in 9.3 m²—an eight-fold density gain over traditional A-frames. Because every sheet is front-facing, no 1.5 m service aisle is required behind the rack, freeing an extra 30 % of workshop length for value-adding machines. If you relocate, the bolt-together frame knocks down into a single export crate; re-assembly at the new site takes two men and one torque wrench, no welded footings or chemical anchors required.
A standard ten-tier block 6 m long × 1.55 m deep stores 60 t of mixed gauges in 9.3 m²—an eight-fold density gain over traditional A-frames. Because every sheet is front-facing, no 1.5 m service aisle is required behind the rack, freeing an extra 30 % of workshop length for value-adding machines. If you relocate, the bolt-together frame knocks down into a single export crate; re-assembly at the new site takes two men and one torque wrench, no welded footings or chemical anchors required.
Built for the Real World, Not the Brochure
Steel is Q355B grade, laser-cut, then robot-welded in 1.2 mm CO² for full penetration. Uprights are 160 mm × 80 mm × 6 mm box; drawer chassis uses 8 mm side plates and 30 mm induction-hardened shafts. After shot-blasting to Sa 2.5, components soak in zinc-rich epoxy and receive a 60 µm topcoat of RAL 5015 polyurethane resistant to coolant, brake cleaner and UV fade. Optional stainless cladding is available for food-grade or coastal plants. The whole assembly carries a 5-year structural warranty and is covered by €2 million product liability underwritten through London market insurers.
Steel is Q355B grade, laser-cut, then robot-welded in 1.2 mm CO² for full penetration. Uprights are 160 mm × 80 mm × 6 mm box; drawer chassis uses 8 mm side plates and 30 mm induction-hardened shafts. After shot-blasting to Sa 2.5, components soak in zinc-rich epoxy and receive a 60 µm topcoat of RAL 5015 polyurethane resistant to coolant, brake cleaner and UV fade. Optional stainless cladding is available for food-grade or coastal plants. The whole assembly carries a 5-year structural warranty and is covered by €2 million product liability underwritten through London market insurers.
Safety Credentials That Satisfy Any Auditor
Drawer travel is limited by positive mechanical stops—no reliance on operator restraint. Each tier is fitted with a spring-loaded detent that prevents accidental roll-out during crane pick, yet releases instantly when pulled. End frames include replaceable polymer buffers to absorb crane swing impact and protect painted edges. Clearance below the lowest drawer is 350 mm, allowing pallet truck passage without creating a trip ledge. Units meet EU EN 1993-1-1 steel design code, carry TÜV issued CE conformity and are supplied with full static calculations signed off by a chartered engineer—documentation that speeds permit approval in Germany, the Nordics and the UAE.
Drawer travel is limited by positive mechanical stops—no reliance on operator restraint. Each tier is fitted with a spring-loaded detent that prevents accidental roll-out during crane pick, yet releases instantly when pulled. End frames include replaceable polymer buffers to absorb crane swing impact and protect painted edges. Clearance below the lowest drawer is 350 mm, allowing pallet truck passage without creating a trip ledge. Units meet EU EN 1993-1-1 steel design code, carry TÜV issued CE conformity and are supplied with full static calculations signed off by a chartered engineer—documentation that speeds permit approval in Germany, the Nordics and the UAE.
From Small Job Shop to Tier-One Automotive
Starting price of USD 2 280 delivers a 2 m × 1.5 m, two-tier module—ideal for a single-shift plasma table cutting 500 parts a week. From there the system scales linearly: bolt on extra bays, swap 1 t rollers for 2 t forgings, add motorised drawers or integrate with an AGV superstructure. Herochu has supplied 40 m long banks feeding 20 kW fibre lasers, and 3 m countertop units beside 1 kW desktop cutters. The same extruded rail profile accepts RFID antennas, LED strip lighting or dust-extraction hoods, so the rack evolves with automation upgrades instead of becoming tomorrow’s scrap iron.
Starting price of USD 2 280 delivers a 2 m × 1.5 m, two-tier module—ideal for a single-shift plasma table cutting 500 parts a week. From there the system scales linearly: bolt on extra bays, swap 1 t rollers for 2 t forgings, add motorised drawers or integrate with an AGV superstructure. Herochu has supplied 40 m long banks feeding 20 kW fibre lasers, and 3 m countertop units beside 1 kW desktop cutters. The same extruded rail profile accepts RFID antennas, LED strip lighting or dust-extraction hoods, so the rack evolves with automation upgrades instead of becoming tomorrow’s scrap iron.
Global Supply, Local Support
Jinan Constant Storage Machinery Manufacturing Co., Ltd. runs its own 15-container-per-month export schedule to Rotterdam, Houston, Jebel Ali and Melbourne. Standard shipments leave Qingdao 15 days after PO; customised powder-coat colours or special drawer widths add five days. A bilingual manual, torque specification sheet and video link are shipped with every crate. If required, a two-person commissioning team will fly in to verify flatness, train operators and sign off on the risk assessment—usually completed before lunch on day one.
Jinan Constant Storage Machinery Manufacturing Co., Ltd. runs its own 15-container-per-month export schedule to Rotterdam, Houston, Jebel Ali and Melbourne. Standard shipments leave Qingdao 15 days after PO; customised powder-coat colours or special drawer widths add five days. A bilingual manual, torque specification sheet and video link are shipped with every crate. If required, a two-person commissioning team will fly in to verify flatness, train operators and sign off on the risk assessment—usually completed before lunch on day one.
Return on Investment in One Fiscal Year
Labour: saving two forklift operators at USD 18 per hour releases USD 86 000 per annum.
Time: 1 800 extra laser hours at USD 120 machine-hour rate generates USD 216 000 revenue.
Material: 0.3 % edge damage reduction on 1 000 t of stainless saves USD 9 000 in rework.
Space: recovering 200 m² of floor eliminates USD 24 000 annual lease cost at USD 120/m².
Even allowing for crane suction-cup hire and electricity, net first-year benefit exceeds USD 200 000 on a typical USD 28 000 ten-tier installation—payback in 7.3 weeks.
Labour: saving two forklift operators at USD 18 per hour releases USD 86 000 per annum.
Time: 1 800 extra laser hours at USD 120 machine-hour rate generates USD 216 000 revenue.
Material: 0.3 % edge damage reduction on 1 000 t of stainless saves USD 9 000 in rework.
Space: recovering 200 m² of floor eliminates USD 24 000 annual lease cost at USD 120/m².
Even allowing for crane suction-cup hire and electricity, net first-year benefit exceeds USD 200 000 on a typical USD 28 000 ten-tier installation—payback in 7.3 weeks.
Next Step
Email a hand sketch, CAD nest or simply tell us the four most common sheet sizes you buy. Within 24 hours you will receive a 3D layout, static report and all-inclusive FOB quotation. Lock the slot, pay a 30 % deposit and your Herochu Workspace Sheet Storage Solution ships in 15 days, ready to turn the corner of your workshop into the fastest, safest, most organised square metres you have ever owned.
Email a hand sketch, CAD nest or simply tell us the four most common sheet sizes you buy. Within 24 hours you will receive a 3D layout, static report and all-inclusive FOB quotation. Lock the slot, pay a 30 % deposit and your Herochu Workspace Sheet Storage Solution ships in 15 days, ready to turn the corner of your workshop into the fastest, safest, most organised square metres you have ever owned.
Q1: What steps should I take to start the procurement process?
Q2: How can I inform you of my need for suitable shelves?
Q3: Should I choose a loading robotic arm or an integrated loading and unloading system?
Q4: Do you offer on-site installation and debugging services?
Q5: What measures do you take to ensure product quality?
Q6: Where is your factory situated?
Q7: How can I verify your company’s strength?
Q8: What type of company are you?
