In high-volume metal fabrication environments, a single warped steel plate or scratched aluminum sheet can trigger a cascade of expensive problems—production delays, rejected parts, and compromised structural integrity. Yet many facilities still rely on outdated floor-stacking methods that invite costly material degradation. Implementing robust sheet metal storage practices isn’t merely about organization; it’s a strategic investment that preserves material flatness, eliminates handling hazards, and transforms warehouse efficiency. At the heart of this transformation lies a deceptively simple solution: engineered sheet metal racks designed specifically for the unique challenges of heavy plate inventory.
Why Sheet Metal Storage Practices Directly Impact Your Profit Margins
The consequences of improper steel plate storage extend far beyond cosmetic imperfections. When plates are stacked directly on concrete floors without proper support, moisture wicks upward, initiating subsurface corrosion that may not become visible until after machining. Uneven weight distribution creates internal stresses, causing 6mm thin-gauge sheets to develop permanent bows exceeding tolerance limits. Perhaps most dangerously, unstable stacks present serious crushing hazards—an 8’×4′ steel plate weighing over 500 kg can cause catastrophic injuries if it topples during retrieval.
Reliable sheet metal racks address these risks systematically. By elevating plates off damp surfaces and distributing weight across engineered cross-members, quality racking eliminates moisture contact and maintains material flatness within ASTM A6 tolerances. More importantly, these systems establish predictable handling patterns, reducing the time operators spend maneuvering around obstacles and decreasing forklift accidents by up to 40% in documented facility assessments. For operations managing diverse alloys—from 5052 aluminum to AR500 abrasion-resistant steel—proper storage practices become the foundation of material traceability and quality assurance.
Core Storage Principles That Protect Plate Integrity
1. Engineer Vertical Space with Stackable Racking Architectures
Modern fabrication facilities face relentless pressure to maximize cubic footage. Stackable sheet metal racks convert underutilized vertical space into productive storage capacity, often increasing inventory density by 60-80% compared to floor stacking. However, not all stackable systems are created equal. The most effective designs feature:
Modular beam spacing adjustable in 50mm increments to accommodate varying plate thicknesses without wasted vertical clearance
Interlocking corner posts with integrated safety pins that prevent accidental disengagement when racks are stacked three or four levels high
Load-rated base frames engineered to support dynamic forces during forklift engagement, not just static weight
For facilities processing sheets up to 25mm thick, a typical configuration might store 15-20 plates per vertical bay. Thinner gauge materials (1.5mm to 6mm) benefit from horizontal cradling systems that prevent nesting or sheets sliding between one another—a common cause of edge burring and handling damage.
2. Specify Racks Built from High-Tensile Structural Steel
The physics of plate storage demands materials that won’t deflect under concentrated loads. Racks fabricated from S355JR structural steel with minimum yield strength of 355 MPa provide the necessary rigidity for stacks exceeding 2,000 kg per bay. Beware of light-duty alternatives using lower-grade steel—these can develop permanent sag in the support beams, transferring stress points directly to your plates and creating new deformation risks.
Critical design elements include:
Continuous welding on all load-bearing joints, not tack welds that can fail under cyclic loading
Powder-coated finishes with 60-80 micron thickness to resist chipping and prevent rust transfer to stored plates
Reinforced column bases with spreading prevention plates that distribute floor loading and maintain rack plumb even on imperfect concrete
When evaluating rack durability, request deflection test data. Quality manufacturers will provide engineering calculations showing less than 1/200th span deflection at rated capacity—essential for maintaining plate flatness during long-term storage.
3. Design for Unobstructed Material Flow and Handling Access
A storage rack that saves space but complicates retrieval defeats its purpose. Effective designs provide clear forklift access from both long sides with minimum 200mm pocket clearance for fork tine insertion. For manual handling of smaller plates, integrated roller conveyors at waist height reduce operator strain and prevent sheets from dragging across rack beams—a primary cause of underside scratching.
Consider these workflow optimizations:
Aisle width planning: Allow 3.5m minimum for counterbalance forklifts, 2.5m for stacker cranes
First-in, first-out (FIFO) orientation: Position newer stock to the rear, with retrieval access to older inventory
Loading zone integration: Design rack ends with chamfered corners to guide forks during blind approaches
For facilities using vacuum lifters or magnetic handling devices, overhead clearances become critical. Racks should position the top plate at 1,200-1,500mm height—ideal for ergonomic engagement without excessive crane lowering distances.
4. Tailor Solutions to Specific Plate Geometries and Weights
Off-the-shelf racks rarely optimize unique inventory profiles. Custom-engineered sheet metal storage solutions—particularly those designed by experienced manufacturers in industrial regions like China, where high-volume steel processing has driven innovation—offer substantial performance advantages. These tailored systems account for:
Non-standard sheet sizes such as 5’×10′ or 6’×12′ plates common in aerospace and shipbuilding
Variable thickness mixing within the same rack bay, using stepped support beams
Material-specific contact surfaces including plastic-laminated supports for polished stainless or foam padding for pre-painted coils
When engaging a custom rack supplier, provide comprehensive data: maximum plate weight, dimensional extremes, handling equipment specifications, and floor load capacity. Premium vendors will deliver 3D warehouse layout simulations showing traffic flow and storage density projections before fabrication begins.
Heavy-Duty Storage Solutions for Large Sheet Metal
Advanced Practices for Maximum Material Protection
Implement Strategic Separation and Cushioning Protocols
Even on properly designed racks, direct plate-to-plate contact causes surface marring. Insert HDPE separator sheets (3mm minimum thickness) between plates, especially for materials with critical finishes like #4 brushed stainless or zinc-coated galvannealed steel. For long-term storage exceeding six months, consider VCI (volatile corrosion inhibitor) interleaving paper that releases protective molecules.
Edge protection deserves equal attention. Install Urethane edge guards on rack uprights where forks might inadvertently contact plates during loading. For vertical storage configurations (common with smaller cut pieces), use adjustable divider bars with nylon faces to prevent sheets from leaning and creating permanent set.
Control Environmental Variables Actively
Steel plates stored in unconditioned warehouses absorb atmospheric moisture, particularly in humid climates or during seasonal transitions. Relative humidity above 60% accelerates oxidation, even on supposedly “stable” carbon steel. Deploy these countermeasures:
Elevate racks 100mm minimum above floor level using concrete footings or adjustable base plates
Install destratification fans to prevent moisture pockets in ceiling-level storage zones
Apply light rust-preventative oil to hot-rolled plates without subsequent processing steps within 30 days
For aluminum and stainless inventories, avoid storing chloride-containing materials (like salt or certain insulation) in the same rack zone—airborne chlorides initiate pitting corrosion that remains hidden until forming or welding reveals compromised integrity.
Establish Rigorous Inventory Management Integration
Modern storage practices connect physical racks to digital inventory systems. Implement barcode or RFID tagging at the rack bay level, scanning plates during put-away and retrieval. This creates automatic material traceability, supports lean manufacturing principles, and prevents “lost” inventory—surprisingly common with floor-stacked plates that become buried.
Best-in-class operations assign specific rack locations by material grade and thickness, reducing search time during rush jobs. A simple alphanumeric grid system (A-1, A-2 for rack positions combined with row identifiers) cuts retrieval time by 50% while preventing operators from “shopping” through multiple stacks—a major cause of handling damage.

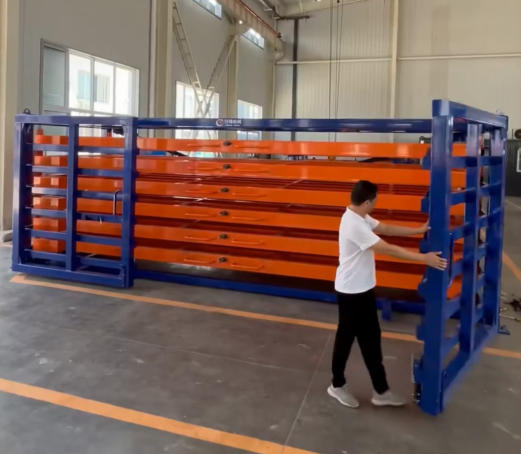

Drawer rack for sheet metal
Measurable Benefits of Proper Sheet Metal Storage Implementation
Safety Transformation: Facilities report 70-85% reductions in manual handling injuries after transitioning from floor stacking to engineered racks. The elimination of unstable stacks removes the primary source of struck-by incidents in metal service centers. Insurance providers often recognize these improvements with reduced workers’ compensation premiums.
Inventory Accuracy Revolution: Digital rack location tracking achieves 99%+ inventory accuracy, compared to 75-80% typical with unmarked floor storage. This precision enables just-in-time purchasing, reduces safety stock requirements by 20-30%, and prevents production stoppages from “missing” material.
Space Economics: One North American fabricator recovered 4,200 square feet of floor space by implementing four-level stackable racks, allowing them to add a new laser cutting cell without facility expansion—a capital savings exceeding $500,000.
Material Preservation Quality: Properly stored plates maintain flatness within 0.5mm per meter, eliminating secondary straightening operations that cost $100-200 per plate in labor and machine time. Surface quality preservation reduces rejection rates in automated welding cells by eliminating rust-induced porosity.
Selecting the Right Storage Solutions Partner
Global supply chains have made high-performance sheet metal storage solutions more accessible, with established manufacturers in industrial hubs offering exceptional value. When evaluating suppliers—whether domestic or international—prioritize these credentials:
Structural engineering certification confirming rack designs meet local seismic and load codes
Material test reports verifying steel grade and weld inspection protocols
Case studies from facilities with similar inventory profiles and throughput requirements
Modular component availability ensuring future expansion or reconfiguration without custom fabrication delays
Reputable providers offer finite element analysis (FEA) of proposed rack configurations under your specific loading scenarios. This engineering rigor distinguishes commodity rack resellers from true material handling partners.
Drawer rack for sheet metal
Industry-Specific Storage Considerations
Automotive Tier Suppliers: Require racks accommodating JIT delivery schedules with frequent SKU changes. Mobile rack systems on heavy-duty casters enable rapid warehouse reconfiguration.
Aerospace Manufacturers: Must store expensive aluminum and titanium plates with zero surface contact damage. Racks featuring air-cushioned supports and full VCI integration are non-negotiable.
Construction Steel Fabricators: Deal with massive plates up to 50mm thick. Cantilever racking systems provide unobstructed access for long plates without front column interference.
Job Shops: Need flexibility for unpredictable material sizes. Adjustable grid-beam racks allow on-the-fly reconfiguration without tools.
Maintenance and Continuous Improvement
Even premium racks require periodic inspection. Schedule quarterly audits checking for:
Beam deflection exceeding 1/200th span
Weld cracks or corrosion at column bases
Safety pin integrity on stacked configurations
Floor anchor bolt torque (if applicable)
Document these inspections in your maintenance management system, creating a compliance trail that demonstrates due diligence during safety audits.
Conclusion: Storage as a Competitive Advantage
In an industry where material costs constitute 60-70% of job expenses, protecting that investment through proper sheet metal storage practices delivers immediate financial returns. The transition from ad-hoc floor stacking to engineered rack systems represents more than operational housekeeping—it fundamentally changes how safely and efficiently your facility moves raw material to finished product.
Begin by auditing your current storage footprint: measure plate sizes, weigh representative stacks, and photograph handling bottlenecks. This data-driven assessment reveals whether standardized stackable racks suffice or whether custom-engineered solutions will unlock greater efficiency. With certified suppliers offering complete design-through-installation support, implementing best-in-class storage has never been more accessible.
Your plates stay flat, your operators stay safe, and your facility gains the space to grow. That’s the measurable impact of treating sheet metal storage as a strategic discipline rather than an afterthought.
