Beyond the Basics: A Workshop Manager’s Guide to Choosing Between Cantilever and Roll-Out Racking
Herochu Mechinery
Not all storage is created equal. Discover the specific applications where Cantilever Racks excel and where Roll-Out Drawers are essential for a streamlined fabrication workflow.
As a workshop manager, you’re tasked with equipping your team for success. This means choosing the right tool for every job, and that philosophy must extend to your storage solutions. The decision between Cantilever Racks and Roll-Out Drawers isn’t about which one is “better” in a vacuum; it’s about which one is perfectly suited to the materials you handle every day. Let’s move beyond the hype and into practical application.
Playing to Their Strengths: A Tale of Two Geometries
The most critical factor in this decision is the shape of your inventory.
Cantilever Racks are the undisputed champion for long, linear items. If your workshop’s lifeblood is processing 6-meter lengths of H-beam steel, structural tubing, piping, or solid bar stock, then cantilever racking is the optimal and most cost-effective solution. Its open-sided design allows for easy forklift access from the side, perfectly accommodating the geometry and weight distribution of long materials.
Roll-Out Drawer Racks are engineered specifically for flat, plate-style materials. If a significant portion of your work involves 4×8, 5×10, or even larger sheets of metal, plastic, or composite panels, then a drawer system is not a luxury—it’s a necessity. Trying to force a cantilever system to handle sheets is like using a screwdriver to pound a nail; it might work, but it’s inefficient and damaging.
The Accessibility Showdown: LIFO vs. FIFO
Your storage system should enable your workflow, not hinder it. This comes down to inventory access.
Cantilever (LIFO – Last-In, First-Out): This is the inherent limitation of stacked storage. The last sheet you put on top is the first one you can easily remove. Accessing anything beneath it requires the laborious and time-consuming process of unloading and reloading other materials.
Roll-Out Drawers (FIFO – First-In, First-Out): Every sheet is a first-class citizen. Each drawer provides direct, selective access to its entire contents. This allows for perfect inventory rotation and, most importantly, instant access to any sheet, at any time, without moving another item. This is a game-changer for laser cutting services and high-mix production where job schedules are dynamic.
A Workshop Manager’s Guide to Choosing Between Cantilever and Roll-Out Racking
Safety and Stability: A Non-Negotiable Priority
Workshop safety is paramount, and storage systems play a crucial role.
Cantilever racks, while stable when properly installed, carry a inherent risk during the unloading process. The “shuffling” required to access buried sheets increases the chance of a load shifting or falling, especially if bundles are not perfectly balanced.
Roll-Out Drawers are designed with contained stability. The heavy-duty drawer slides are engineered to handle the load, and when the drawer is extended, the entire unit remains stable because it is strictly bolted to a concrete floor. This anchoring is a mandatory safety requirement that prevents tipping and creates a predictably safe retrieval process, especially when paired with an overhead crane.
The Hybrid Solution: The Best of Both Worlds
The most efficient workshops often don’t choose one over the other; they use both strategically. A hybrid layout is the ultimate expression of “the right tool for the right job.”

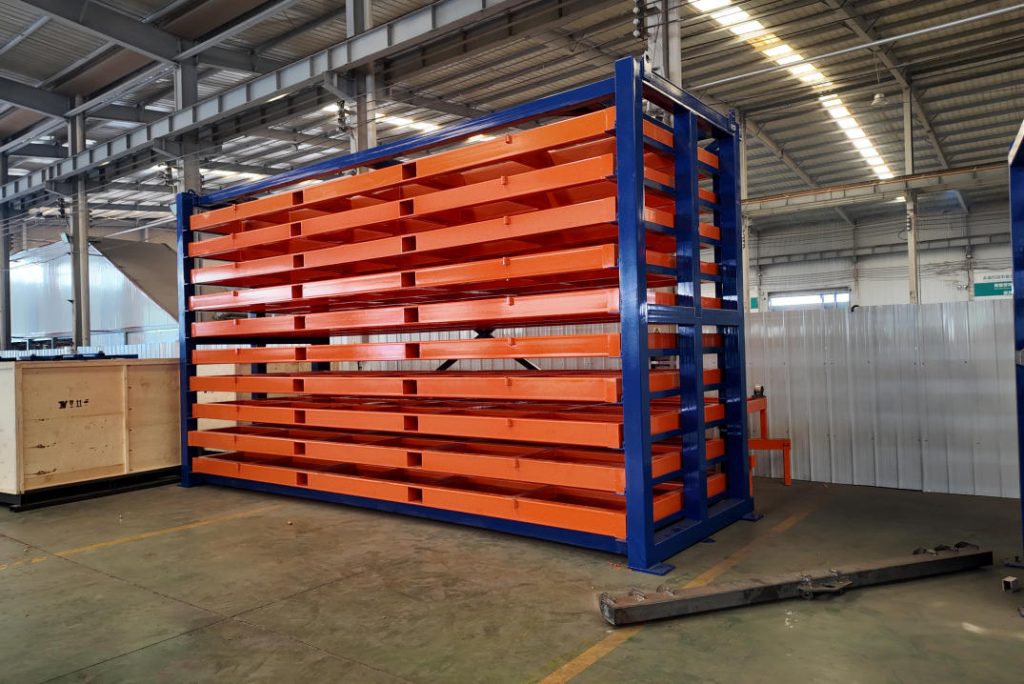

Heavy Duty Flat Products Storage Racks
Imagine a workshop layout where:
A bank of Roll-Out Sheet Racks stands near the laser cutter and press brake, holding all flat sheet stock for quick, crane-accessible workflow.
A section of Cantilever Racking lines another wall, neatly organized with long tubes, bars, and structural steel for the sawing and welding stations.
This approach maximizes efficiency across all material types, minimizes cross-shop traffic, and empowers each team to work at their peak speed.
Answering Your Practical Questions
Can I store tubes in a Roll-Out Rack? Yes, with dividers, but for high volume, a dedicated cantilever or bar-specific roll-out rack is better.
What about very long sheets? Custom manufacturers build heavy-duty drawers exceeding 6 meters in depth for industries like shipbuilding.
Can I use my vacuum lifter? Absolutely. The 100% extension of the drawer is the ideal partner for vacuum lifters, providing unobstructed access to the sheet’s entire surface.
By understanding the core strengths of each system, you can invest in a storage solution that doesn’t just hold your materials—it actively accelerates your production.
Below are answers to common questions from customers exploring our industrial storage systems for sheet metal, bars, tubes, and profiles. If you don’t see your question here, feel free to reach out—we’re happy to help.
Q1: Can I customize the size, capacity, or finish of the racks? Yes. Every Herochu storage system is built to order. Whether you need a specific height to fit under a mezzanine, a non-standard drawer depth for oversized panels, or a particular powder-coated color to match your facility’s safety coding, we’ll work with you at no extra design cost. Just share your space constraints and material specs, and we’ll engineer a solution that fits.
Q2: Are you the actual manufacturer? We are—not a reseller or trading company. Herochu operates its own 10,000-square-meter production facility in Jinan, China, and has been designing and building industrial storage equipment for over 15 years. This allows us to control quality, lead times, and pricing directly.
Q3: Is there a minimum order requirement? No minimums. Whether you need one automated vertical rack for a small workshop or a full warehouse rollout with multiple units, we accommodate all project scales. Single-unit orders receive the same engineering attention and quality checks as large-volume contracts.
Q4: How can I access detailed technical information? Click the “Get a Quote” button on our website to request CAD drawings, load capacity charts, installation manuals, product videos, and 3D renderings. Our sales engineers will also schedule a call to walk you through specifications based on your application—no generic brochures, just relevant details.
Q5: What information do you need to design a storage solution for me? To create an accurate proposal, please provide:
The type of material (e.g., steel sheet, aluminum extrusion, stainless tube)
Dimensions (length, width, thickness/diameter)
Weight per bundle or individual piece
Desired storage density (how much you need to store in a given area)
Any automation requirements (e.g., integration with laser cutters or CNC machines)
You can also simply leave your contact info, and a specialist will reach out to guide you through the process.
Q6: Do you offer automation like robotic arms or gantry loaders? Yes. We design and integrate servo-driven gantry systems, loading robotic arms, and automated material exchange platforms that sync with your existing machinery—especially laser cutting tables. These systems can pull sheets or profiles directly from our vertical racks and place them onto your machine bed, reducing manual handling and cycle time. Tell us your equipment model and workflow, and we’ll tailor the interface.
Q7: Do you provide on-site installation support? Absolutely. Our certified technicians travel internationally to handle assembly, calibration, and operator training. We’ve completed installations across North America, the Middle East, Africa, and Asia—including the USA, Mexico, South Korea, Russia, Qatar, Egypt, South Africa, and Lebanon. Remote support is also available for simpler setups.
Q8: How do you guarantee product reliability and safety? Quality isn’t an afterthought—it’s built into every stage:
All structural components use Q235 or higher-grade steel, welded and stress-tested.
Every unit undergoes full-load simulation before shipping.
Our in-house quality control team follows ISO 9001 protocols from raw material inspection to final packaging.
All export units carry CE certification, meeting EU mechanical safety standards.
Over 40 experienced engineers support design validation, troubleshooting, and continuous improvement.
Q9: Where is your factory located? Our manufacturing base is in Jiyang Industrial Park, Jinan, Shandong Province, China. The facility spans 10,000 square meters and includes dedicated zones for cutting, welding, surface treatment, assembly, and testing. We welcome both virtual and in-person visits so you can see our capabilities firsthand.
Q10: How can I verify your production and technical capabilities? We encourage due diligence. You can:
Request a live video tour of our workshop during operating hours.
Review third-party inspection reports or certification documents.
Speak directly with our engineering team about past projects similar to yours.
Visit our factory by appointment—many international clients do.
Transparency is key to long-term partnerships, and we’re confident in what we build.
Q11: What does your company specialize in? Herochu (operated by Jinan Constant Storage Machinery Manufacturing Co., Ltd.) is a high-tech enterprise focused exclusively on intelligent industrial storage solutions. Our core products include:
Automatic vertical sheet metal warehouses
Drawer-style roll-out racks for plates and remnants
Heavy-duty cantilever racks for long bars and pipes
Servo manipulators and gantry loading systems
Fully integrated material handling lines for laser and plasma cutting cells
Backed by advanced fabrication equipment and a team of mechanical, electrical, and automation engineers, we serve metal fabricators, aerospace suppliers, construction material distributors, and renewable energy manufacturers worldwide—delivering systems that are not only strong and safe but also smart, scalable, and built to last.
If you’re ready to replace floor clutter with precision storage, we’re ready to help you design it.
