In industrial environments where space optimization and material accessibility are paramount, drawer-type sheet metal racks have emerged as game-changing storage solutions. These innovative systems are revolutionizing how factories manage sheet metal inventory, offering a combination of space efficiency, load capacity, and ease of access that traditional storage methods simply cannot match.

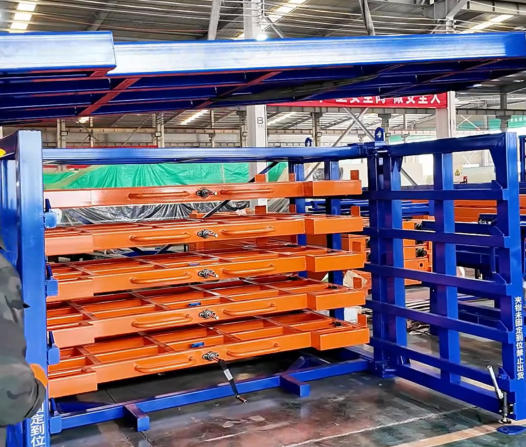

The drawer-type sheet metal rack is a storage system specifically designed for storing sheet metal materials in an organized, accessible manner. Unlike conventional shelving or stacking methods that require manual lifting or forklift assistance, these racks feature pull-out drawers that allow for easy material retrieval without disassembling entire stacks. This design significantly reduces labor intensity and improves workplace safety while maximizing storage density.
Core Features and Benefits
Space-Saving Design with High Capacity
One of the standout features of drawer-type sheet metal racks is their space-efficient design. The heavy-duty pull-out sheet drawer rack can be configured with multiple layers, each capable of supporting substantial weight – up to 20 tons per layer in some models. This vertical storage approach allows factories to utilize their vertical space effectively, often doubling or tripling storage capacity compared to traditional floor stacking methods.

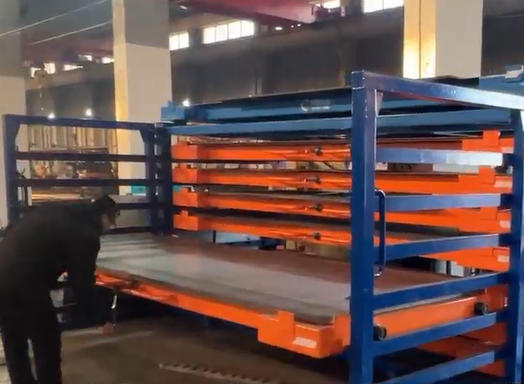

The drawer-style board shelving rack is particularly beneficial for facilities dealing with large-sized sheet metal panels. By storing materials vertically in pull-out drawers, manufacturers can keep their workshop floors clear, improving workflow efficiency and safety. The drawers can be customized in size to accommodate various sheet dimensions, with some models offering up to 12 meters of extended storage space when fully deployed.
Enhanced Accessibility and Operation Flexibility
Accessibility is revolutionized with drawer-type storage systems. The hand crank and forklift sheet metal storage equipment options provide flexibility for different operational needs. For manual operation, workers can easily pull out drawers with minimal effort thanks to high-quality slide rails that ensure smooth movement without jamming or slipping. For larger operations, electric versions can be controlled with a single remote button, allowing for effortless material retrieval.
The roll-out sheet metal racks design eliminates the need for workers to rummage through piles of materials. Each drawer can be systematically organized by category and layer, enabling quick access to specific sheets without disrupting other stored materials. This organization significantly reduces search time and minimizes material handling damage.
Safety and Customization Features
Safety is integrated into every aspect of drawer-type sheet metal storage solutions. The anti-pinch design features safety gaps between drawers and frames, protecting operators from finger injuries during operation. Prominent load capacity signs are visibly displayed on each shelf, preventing overloading and ensuring safe working conditions.
Customization options make these systems adaptable to various workshop requirements. The number of layers can be adjusted based on material thickness and storage needs, with some models offering up to 10 customizable layers. Load-bearing customization allows for different rail and frame structures based on the maximum weight of stored materials. Size customization ensures optimal space utilization, with dimensions tailored to accommodate the largest sheet sizes while fitting within available warehouse space.
Technical Specifications and Customization Options
Standard Models and Configurations
Several standard models of drawer-type sheet metal racks are available, each designed to meet specific storage requirements:
- HC-B3015-63: Features 3 layers with a 3-ton load capacity per layer and dimensions of 3×1.5 meters per layer. The overall dimensions are 3505x2280x2000mm, with 6 customizable layers.
- HC-B4015-65: Offers 4 layers with a 5-ton load capacity per layer and dimensions of 4×1.5 meters per layer. Overall dimensions are 4505x2280x2000mm, with 6 customizable layers.
- HC-B4020-68: Provides 4 layers with an 8-ton load capacity per layer and dimensions of 4×2 meters per layer. Overall dimensions are 4505x2280x2500mm, with 6 customizable layers.
- HC-B6020-610: Delivers 6 layers with a 10-ton load capacity per layer and dimensions of 6×2 meters per layer. Overall dimensions are 6505x2280x2500mm, with 6 customizable layers.
Customization Possibilities
The true strength of drawer-type sheet metal storage systems lies in their customization capabilities:
- Layer Customization: The number of layers can be adjusted based on material thickness and storage capacity requirements, with options for up to 10 layers in some configurations.
- Load Bearing Customization: Guide rails and frame structures can be upgraded based on the maximum weight of stored materials, ensuring optimal performance and safety.
- Size Customization: Drawer dimensions can be tailored to accommodate specific sheet sizes, with options for extra length and width allowance based on customer requirements. Height can also be customized to maximize vertical space utilization within a facility.
Integration with Material Handling Systems
For enhanced operational efficiency, drawer-type sheet metal racks can be integrated with various material handling systems:
- Lifting System Integration: Compatible with workshop lifting equipment such as gantry cranes and cranes, enabling mechanized storage and retrieval of heavy materials.
- Ladder Truck Compatibility: For taller storage configurations, mobile climbing platform vehicles can be utilized to safely access materials stored in upper drawers.
- Label System Implementation: Transparent label sleeves or reserved label areas at the front of each drawer facilitate visual management and quick identification of stored materials.
Practical Applications Across Industries
Manufacturing and Metal Processing
In metalworking environments, drawer-type sheet metal racks streamline material handling processes. Workers can quickly access specific sheet metal panels without disrupting other materials, significantly reducing production downtime. The ability to store materials by category and layer enhances organization and workflow efficiency.
Furniture Production Workshops
Furniture manufacturers benefit from the drawer-style board shelving rack’s ability to store large-sized sheet materials efficiently. The system prevents board searching loss and stacking pressure damage, ensuring materials remain in optimal condition for production.
Building Materials Warehouses
For distributors of building materials, the roll-out sheet metal racks provide an organized storage solution that maximizes space while allowing easy access to inventory. The customizable size options ensure efficient use of available warehouse space.
Automotive and Aerospace Industries
The heavy-duty sheet metal storage solution meets the demanding requirements of industries handling large, heavy sheet metal components. The high load capacity and smooth operation features make it ideal for storing materials used in vehicle and aircraft manufacturing.
Implementation Considerations
Space Planning and Layout
Proper implementation of drawer-type sheet metal storage systems requires careful space planning. Factors to consider include available floor space, ceiling height, and workflow patterns within the facility. The customizable nature of these systems allows them to be adapted to various workshop layouts.
Safety and Maintenance
While these systems are designed with safety in mind, proper training in their use is essential. Regular maintenance of drawer mechanisms and load-bearing components ensures long-term performance and safety. The anti-pinch design and load capacity indicators contribute to creating a safer work environment.
Cost-Benefit Analysis
Investing in drawer-type sheet metal storage solutions offers significant long-term benefits. While the initial cost may be higher than traditional storage methods, the efficiency gains, space savings, and reduced material damage translate into substantial cost savings over time.
Conclusion
The drawer-type sheet metal rack represents a significant advancement in industrial storage solutions. By combining space efficiency with easy accessibility and customizable features, these systems address many of the challenges faced by manufacturers and warehouses in managing sheet metal materials. The heavy-duty pull-out sheet drawer rack design not only improves workshop organization but also enhances operational efficiency and workplace safety.
As industries continue to seek ways to optimize their operations, the drawer-style board shelving rack and its variations provide a comprehensive heavy-duty sheet metal storage solution that can be tailored to specific operational requirements. Whether through hand crank operation or integrated with forklift systems, these innovative storage solutions are setting new standards for material management in industrial environments.
