Automated Vertical Storage for Bars and Tubes

Imagine walking into your workshop and seeing every steel bar, aluminum tube, and metal profile neatly organized—not stacked haphazardly against walls or buried under piles, but stored vertically in a secure, automated system that delivers exactly what you need, when you need it. This isn’t a futuristic vision. It’s the reality offered by the Herochu Automatic Vertical Bars & Tubes Storage System—a CE- and ISO 9001-certified solution starting at $19,999, designed specifically for industrial operations that refuse to compromise on efficiency, safety, or space utilization.

The Problem with Conventional Profile Storage

For decades, workshops have relied on three flawed methods to store long materials:

1. Floor stacking – Consumes vast floor area, risks material deformation, and creates trip hazards.
2. Static cantilever racks – Better than floor piles, but still require forklifts for upper levels and offer no inventory visibility.
3. Open shelving – Prone to disorganization, especially with mixed SKUs and remnant pieces.

These approaches not only waste space—they slow down production, increase labor costs, and elevate safety risks. In an era where lean manufacturing and just-in-time delivery dominate, such inefficiencies are unsustainable.

Herochu’s Answer: Intelligent Vertical Automation

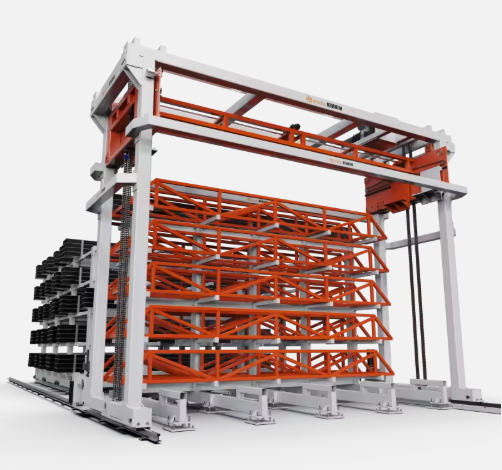

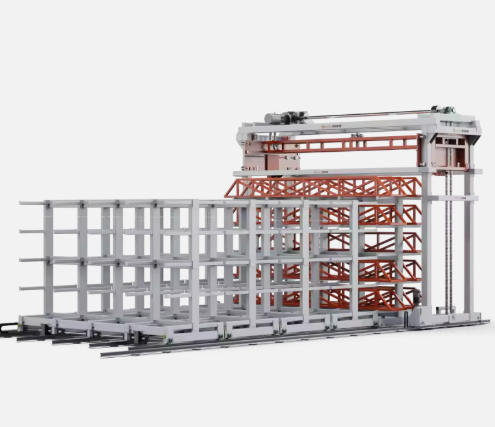

The Herochu system redefines profile storage by merging structural strength with smart motion control. Its core architecture includes:

• A gantry-style loading/unloading station that serves as the human-machine interface
• Multi-layer racks (8–13 floors) built from high-grade Q235 steel
• Chain-driven vertical lift mechanism moving at 9 m/min
• Linear guide rails ensuring smooth, precise horizontal movement at 12 m/min during material exchange

Each layer supports 3 to 5 metric tons, with total system capacities ranging from 8 tons to over 65 tons, depending on configuration. Standard rack lengths—6015 mm, 6020 mm, and 6025 mm—accommodate most industrial profile sizes, while optional profile support cradles can be tailored to round, square, hexagonal, or custom cross-sections.

Space Optimization Without Sacrificing Accessibility

One of the biggest misconceptions about vertical storage is that “higher = harder to reach.” Herochu flips this notion on its head. Instead of forcing workers to reach up, the system brings the material down—or positions it at waist level—via automated vertical translation. This eliminates ladder use, reduces strain injuries, and accelerates retrieval cycles.

Consider a mid-sized fabrication shop with a 5-meter ceiling. A traditional layout might store 4 layers of tubes using static racks. With Herochu’s 12-layer system, the same footprint now holds three times the inventory—all instantly accessible. The result? Fewer material runs, less floor congestion, and a cleaner, safer workspace aligned with 5S principles.

Durability Meets Certification

Built for 24/7 operation, the Herochu system features:

• Welded steel frames with reinforced joints
• Powder-coated surfaces resistant to oil, moisture, and abrasion
• Sealed chain drives and linear bearings requiring minimal lubrication
• Emergency stop and overload protection for operator safety

All units comply with CE and UE machinery directives, ensuring safe deployment across Europe and beyond. The ISO 9001 certification guarantees consistent manufacturing quality—from raw material sourcing to final assembly.

Tailored to Your Industry, Not a Template

Herochu doesn’t sell off-the-shelf boxes. We engineer solutions. Whether you’re storing:

• Stainless steel round bars for machining centers
• Aluminum T-slots for automation framing
• Galvanized square tubes for construction
• Carbon fiber rods for aerospace prototyping

…our team works with you to select the optimal number of layers, support geometry, and control interface. Need integration with your existing WMS? Want remote diagnostics via IoT sensors? These are not afterthoughts—they’re part of the conversation from day one.

ROI Beyond the Price Tag

At $19,999+, the Herochu system represents a strategic capital investment—not just an equipment purchase. Clients typically see returns through:

• 50%+ reduction in floor space used for storage
• 40% faster material retrieval
• Near-elimination of handling damage
• Lower insurance premiums due to improved safety compliance

For high-volume operations, the payback period often falls under 18 months.

Conclusion: The Future of Profile Storage Is Vertical—and Automated

The Herochu Automatic Vertical Bars & Tubes Storage System isn’t about replacing workers—it’s about empowering them with better tools. By automating the heavy lifting (literally), it frees skilled labor to focus on value-added tasks while ensuring materials are always organized, protected, and ready for production.

If your workshop is ready to leave floor clutter behind and embrace intelligent, certified, and customizable storage, Herochu delivers more than racks—it delivers results. Contact us today for a site assessment and discover how vertical automation can transform your operation from the ground up.
