Drive-In Pallet Rack Alternative: Space-Saving Drawer-Type Sheet Metal Storage with Automated Retrieval Compatibility

Warehouse space represents one of the most expensive operational costs for manufacturing and distribution facilities. Traditional storage methods—stacking materials on floors or using conventional shelving—consume vast amounts of square footage while creating accessibility challenges and safety hazards. Our drawer-type sheet metal storage system offers a revolutionary approach that functions as an effective Drive-In Pallet Rack alternative while providing superior accessibility and Automated Retrieval readiness. This Warehouse Rack solution transforms vertical space into productive storage, enabling facilities to store up to eight layers of heavy materials in the same footprint previously occupied by a single stack.

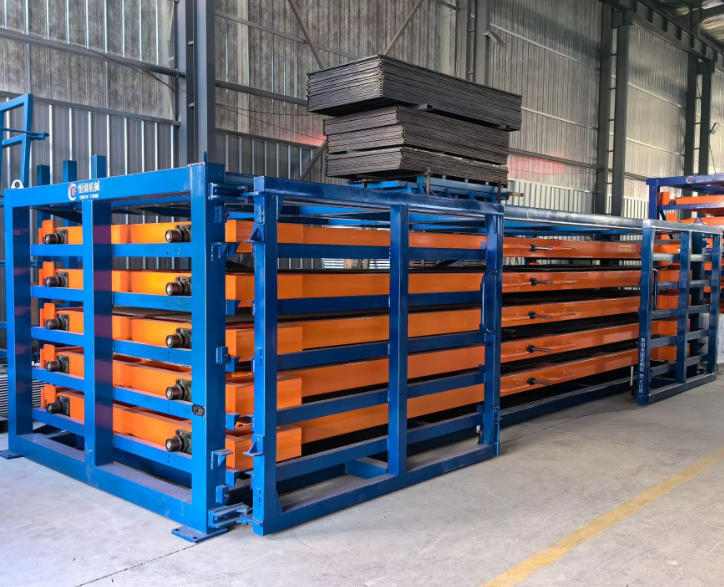

The fundamental advantage of this system lies in its space optimization capability. Where conventional storage might accommodate a few stacks of sheet metal, the multilayer design creates five to eight distinct storage levels within the same vertical column. Each drawer extends completely, providing 100% access to stored materials without the “honeycombing” inefficiencies common in drive-in systems. This full extension capability means every square inch of storage space remains accessible and usable, eliminating the dead zones that plague traditional pallet rack configurations. Facilities typically achieve a 300-400% increase in storage density, turning underutilized vertical cube into revenue-generating storage capacity.

The Automated Retrieval compatibility distinguishes this system from static storage solutions. While many facilities initially deploy the racks for manual operation, the robust steel slide rail technology and precise engineering create the foundation for future automation. The consistent drawer alignment, smooth operation under load, and structural rigidity support the integration of robotic extractors, automated guided vehicles, and computer-controlled retrieval systems. This forward-thinking design protects your investment as operations scale toward Industry 4.0 smart manufacturing principles. The transition from manual to automated access requires minimal modification, primarily involving control system integration rather than structural changes.

Application versatility makes this system suitable for diverse industry sectors. Electronics manufacturers store precision metal stampings and fabricated components in organized drawers that prevent surface damage. Automotive suppliers manage body panels, chassis components, and structural elements in configurations that support just-in-time delivery sequences. Mechanical fabrication shops organize raw sheets, cut blanks, and finished parts in designated drawers that streamline workflow from receiving through shipping. The logistics and distribution sector handles a wide variety of metal products with the flexibility to accommodate different sizes and weights within the same rack structure.

Jinan Hengchu Storage Machinery Manufacturing Co., Ltd., the manufacturer behind this innovative storage solution, operates as a direct manufacturer with over 15 years of specialized experience in storage equipment production. Unlike distributors who simply broker products, this company controls the entire value chain from R&D through installation and service. The 10,000-square-meter manufacturing facility in Jiyang Industrial Park, Jinan, Shandong, China houses advanced production equipment including CNC cutting machines, robotic welding stations, and automated powder coating lines. This manufacturing depth ensures consistent quality, rapid customization capability, and competitive pricing without intermediary markups.

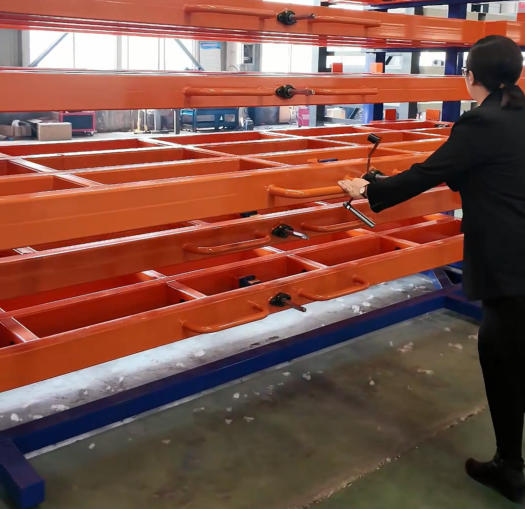

The drawer-type architecture fundamentally changes material handling dynamics in warehouse environments. Each drawer operates independently, allowing access to one layer without disturbing materials stored above or below. This selective access reduces handling time and prevents the cascading material movement required in drive-in rack systems. Operators can retrieve specific sheets or plates directly, rather than moving multiple pallets to access inventory at the back of a bay. The smooth drawer sliding mechanism, enabled by precision steel rail technology, requires minimal effort even when drawers are loaded to the 3-ton-per-layer capacity. This ease of operation reduces worker fatigue and improves productivity across shifts.

Material protection represents a significant secondary benefit. Stacking plates and sheets directly on floors or on pallets creates opportunities for surface damage, contamination, and corrosion. The elevated drawer design keeps materials off concrete floors where moisture can cause rust. The powder coated finish on the drawers creates a smooth, non-abrasive surface that prevents scratching of valuable materials. In environments handling stainless steel, aluminum, or pre-painted sheets, this protection maintains material integrity and reduces rejects due to handling damage. The corrosion protection features ensure the rack itself withstands harsh conditions, providing reliable service in facilities with high humidity, chemical exposure, or temperature variations.

The foldable and ESD protection features available on certain models address specialized requirements. The foldable design allows for temporary reconfiguration or relocation of storage modules without complete disassembly. This flexibility supports facilities that reconfigure production lines or expand operations periodically. For electronics manufacturing, ESD (electrostatic discharge) protection prevents damage to sensitive components during storage and retrieval. The anti-rust properties and powder coated finish work in concert to create a storage environment that preserves both the rack structure and the stored materials.

Installation flexibility accommodates various facility constraints. The Countertop installation reference in specifications indicates the system’s adaptability to different mounting scenarios, though most industrial applications involve floor-mounted installations for maximum stability. The installation process, whether handled by in-house maintenance teams or professional technicians, follows logical assembly sequences with bolted connections that ensure square and plumb alignment. For customers preferring professional installation, the manufacturer’s technicians provide on-site assembly, leveling, load testing, and operator training. This turnkey service ensures the system operates at peak performance from day one and that staff understand proper loading procedures and weight distribution principles.

The Certificate portfolio—including CE marking and ISO9001 compliance—supports procurement in regulated industries. These certifications verify that the design, materials, and manufacturing processes meet international standards for safety and quality. For export customers, these certifications simplify customs clearance and satisfy local regulatory requirements. The documentation package includes detailed load charts, structural analysis reports, and maintenance guidelines that support facility safety audits and insurance requirements.

Color customization options extend beyond aesthetics to functional organization. Facilities can implement color-coding systems where different colors identify material types, project assignments, or priority levels. The Customized Color capability means the powder coated finish can match corporate branding or integrate with existing equipment color schemes. This visual organization aids quick identification and reduces errors in material selection during busy production periods.

The Application scope spans numerous heavy industries. Railway equipment manufacturers store long steel sections and plate components in the extended 6000*2000mm configurations. Petrochemical facilities organize maintenance parts and metal stock in corrosive-protected units that withstand harsh environments. Textile machinery producers manage large castings and fabrications in organized drawers that support complex assembly sequences. The versatility to handle plates, sheets, tubes, and irregular fabrications makes this system a universal storage solution for metalworking industries.

Functionality extends to integration with cutting and processing equipment. Laser cutting operations stage raw sheets adjacent to cutting tables, reducing material handling time between storage and processing. Shearing operations organize cut blanks by size and job sequence. CNC cutting centers maintain inventory of standard plate sizes ready for programmed jobs. This proximity storage model reduces work-in-process travel distance, shortens lead times, and improves overall equipment effectiveness (OEE) metrics.

The Usage scenario in Warehouse Storage System design emphasizes systematic organization. Facilities implement these racks as part of comprehensive storage strategies that include aisle width optimization, traffic flow patterns, and inventory management protocols. The clear span design of the drawers allows for easy cleaning underneath, maintaining housekeeping standards. The absence of wheels means the racks can be anchored to the floor, creating permanent infrastructure that supports facility layout optimization and safety compliance.

The Heavy-duty construction employs welded steel frames that provide excellent support while optimizing space. This welded construction eliminates the maintenance associated with bolted frame systems, where vibration can loosen connections over time. The monolithic frame design ensures that loads distribute properly through the structure, preventing point loading that could cause deformation. The space optimization comes not just from vertical stacking but from the minimal footprint relative to storage capacity—each rack provides up to 24 tons of storage capacity in less than 10 square meters of floor space.

For facilities evaluating return on investment, the math proves compelling. Consider a facility currently storing 100 tons of sheet metal in floor stacks occupying 500 square meters. By implementing drawer-type racks with eight layers, the same 100 tons occupies approximately 125 square meters—a 75% reduction in storage footprint. This freed space can be repurposed for additional production equipment, creating revenue opportunities that far exceed the rack investment. Alternatively, facilities can delay expensive building expansions, preserving capital for core business investments.

The professional after-sales support structure ensures long-term value realization. The dedicated support team assists with capacity planning, helping customers determine optimal rack configurations based on material dimensions, throughput requirements, and facility constraints. Technical support addresses operational questions, maintenance procedures, and troubleshooting. The global service network means customers anywhere in the world receive timely assistance, whether through remote consultation or on-site service visits.

Quality control processes protect customers from the risks associated with inferior storage equipment. The quality control department conducts material verification on incoming steel, ensuring Grade Q235B consistency. Welding inspection includes visual examination, dimensional verification, and sample destructive testing to validate weld strength. The powder coating process undergoes thickness measurement and adhesion testing. Final inspection includes full drawer extension tests under rated load, structural dimensional verification, and cosmetic examination. This comprehensive quality system ensures every rack meets specifications before shipment.

The counter argument to drawer-type systems often involves initial cost compared to basic pallet racking. However, when factoring the total cost of ownership—including space efficiency, material protection, handling time reduction, and safety improvements—the drawer-type system delivers superior value. The elimination of product damage alone can justify the investment, particularly for facilities handling high-value stainless steel, aluminum, or pre-finished materials. The reduction in workplace injuries decreases workers’ compensation costs and lost-time incidents. The space savings defers capital expenditure on facility expansion.

In conclusion, this drawer-type sheet metal storage system functions as an advanced Drive-In Pallet Rack alternative while offering superior accessibility, safety, and Automated Retrieval readiness. The space optimization, heavy-duty capacity, and intelligent design create a storage infrastructure that supports operational excellence across diverse industrial applications. For facilities seeking to maximize storage density while improving material handling efficiency, this system delivers measurable benefits that impact the bottom line from the first day of operation.
