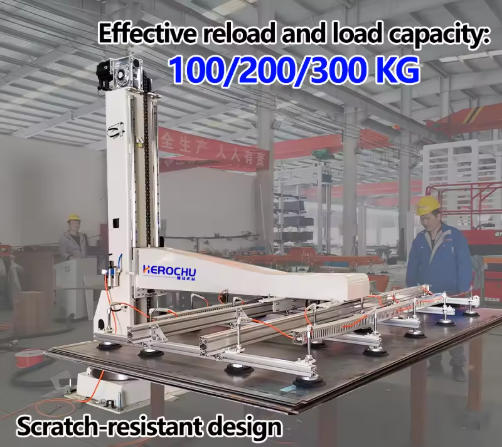

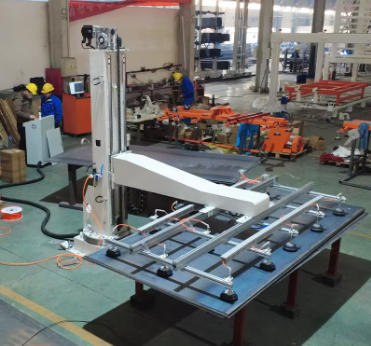

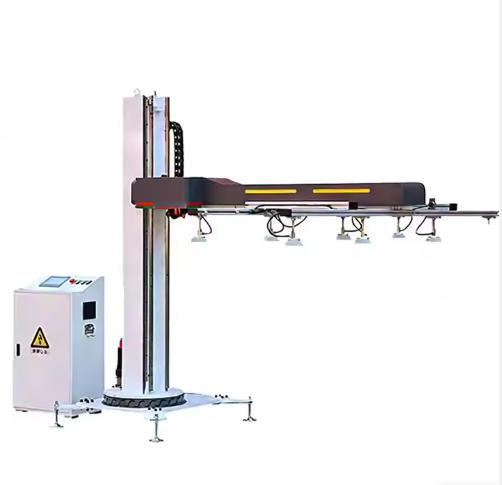

Heavy-Duty Rotary Loading Robot for 100KG/200KG/300KG – The Ultimate Solution for Industrial Plate Handling
Handling large, heavy plates is one of the most physically demanding—and dangerous—tasks in metalworking. Workers routinely lift sheets weighing over 200 kg, often in awkward positions, risking chronic injury, dropped loads, or surface damage. Manual methods simply can’t meet the demands of modern high-efficiency, high-quality production. The solution? A Heavy-Duty Rotary Loading Robot for 100KG/200KG/300KG—a rugged, intelligent automation platform built for the realities of industrial plate handling.
Primary Keywords: Heavy-Duty Rotary Loading Robot for 100KG/200KG/300KG, Loading and Unloading Industrial Robot Arm Manipulator, 3-axis professional automatic handling equipment
Handling large, heavy plates is one of the most physically demanding—and dangerous—tasks in metalworking. Workers routinely lift sheets weighing over 200 kg, often in awkward positions, risking chronic injury, dropped loads, or surface damage. Manual methods simply can’t meet the demands of modern high-efficiency, high-quality production. The solution? A Heavy-Duty Rotary Loading Robot for 100KG/200KG/300KG—a rugged, intelligent automation platform built for the realities of industrial plate handling.
This system goes beyond basic automation. It combines structural strength, motion intelligence, and material-specific tooling to create a turnkey solution for loading, unloading, staging, and sorting across laser cutting, plasma tables, press brakes, and warehouse operations.
Three Models, One Mission: Handle Any Plate, Any Time
Understanding that no two shops have identical needs, the robot is offered in three precisely calibrated payload classes:
- 100 kg Model: Optimized for speed and agility with light alloys (aluminum, brass, thin stainless). Ideal for high-mix environments producing enclosures, brackets, or signage. Cycle times under 10 seconds enable true unattended operation during night shifts.

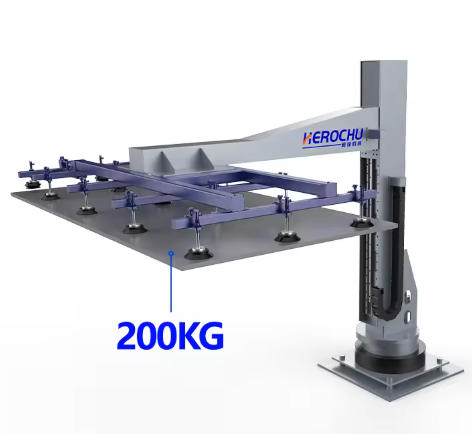

- 200 kg Model: The balanced performer. Handles 6–10 mm mild steel—the backbone of general fabrication—with unwavering stability. Perfect for HVAC, agricultural equipment, or electrical cabinet manufacturers.
- 300 kg Model: Built for extremes. Confidently lifts 20+ mm thick steel plates used in shipbuilding, mining, or heavy construction. Features reinforced linkages, dual-drive lift systems, and shock-absorbing mounts to handle dynamic loads without vibration.
All models share a 2,700 mm arm span, 360° base rotation, and ±0.05 mm positioning accuracy, ensuring consistent performance whether feeding a laser or stacking finished parts.
Precision Motion Meets Industrial Durability
Powered by high-torque servo motors and driven by a sprocket-chain transmission system, the robot delivers smooth, controlled motion even under maximum load. Unlike belt-driven alternatives that stretch or slip over time, the chain mechanism ensures long-term positional fidelity and minimal maintenance.
The compact column design—just 300 mm in total base height—allows installation in tight spaces between machines or along narrow warehouse aisles. Despite its small footprint, it accesses material stored up to 2.7 meters high, effectively turning vertical space into usable inventory capacity.
Custom End-Effectors for Flawless Material Contact
The key to scratch-free handling lies in the gripper. Standard configurations include:
- Modular vacuum arrays with 8–16 independently controlled zones
- Soft-grip mechanical clamps for non-porous or oily surfaces
- Hybrid systems combining suction and edge retention for irregular shapes
Gripper patterns are customized based on your typical sheet sizes (from 0.5m × 1m to 2m × 3m) and material types. Silicone or polyurethane contact points prevent marring, while real-time pressure feedback ensures secure hold without deformation.
24/7 Reliability with Built-In Intelligence
This isn’t just a mechanical arm—it’s a connected asset. Integrated sensors monitor:
- Motor temperature and current draw
- Chain tension and joint wear
- Vacuum pressure and sheet presence
Data is logged locally or sent to cloud dashboards for predictive maintenance. When paired with a WMS or MES, the robot can auto-select the correct material for the next job, verify lot numbers via barcode, and log every handling event for traceability.
Compared to manual labor, it boosts handling efficiency by over 60%, reduces workplace injuries by nearly 100%, and eliminates costly rework from surface damage.
Comprehensive Support from Design to Deployment
We don’t believe in “ship and forget.” Every customer receives:
- Free 3D simulation and layout drawings to validate fit and function
- On-site installation and operator training by factory-certified technicians
- Dedicated after-sales engineer for ongoing support
- Batch-level quality inspection records for full traceability
Each unit undergoes rigorous testing: every screw torqued to spec, every weld inspected, every motion cycle validated. Quality isn’t a department—it’s the baseline.
Applications Across the Industrial Spectrum
While commonly deployed in sheet metal fiber laser cutting production lines, this Loading and Unloading Industrial Robot Arm Manipulator also excels in:
- Plasma and oxy-fuel cutting table loading
- Press brake infeed for large panels
- Automated warehouse palletizing of finished parts
- Composite or plastic sheet processing
Whether you need a 3-axis professional automatic handling equipment for basic transfer or a full Four-axis Column Robot for Efficient Loading & Unloading, this platform scales with your ambition.
In conclusion, the Heavy-Duty Rotary Loading Robot for 100KG/200KG/300KG represents the convergence of strength, intelligence, and practicality. It doesn’t just move metal—it protects value, empowers workers, and unlocks throughput. For fabricators ready to leave manual handling behind, this is the definitive next step.
