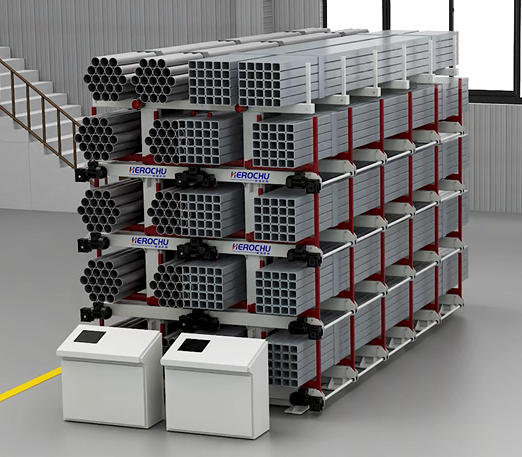

Telescopic Heavy-Duty Cantilever Rack for Long-Tube Storage
Long – tube materials, such as steel pipes, aluminum tubes, and plastic tubes, are widely used in various industries, including construction, manufacturing, and engineering. However, storing these long and cylindrical materials can be a hassle, as they are prone to rolling, damage, and difficult to access. The Telescopic Heavy – Duty Cantilever Rack for Long – Tube is specifically engineered to address these challenges, providing a safe, efficient, and space – saving storage solution for long – tube materials.
Long – tube materials, such as steel pipes, aluminum tubes, and plastic tubes, are widely used in various industries, including construction, manufacturing, and engineering. However, storing these long and cylindrical materials can be a hassle, as they are prone to rolling, damage, and difficult to access. The Telescopic Heavy – Duty Cantilever Rack for Long – Tube is specifically engineered to address these challenges, providing a safe, efficient, and space – saving storage solution for long – tube materials.
As the name suggests, the Telescopic Heavy – Duty Cantilever Rack for Long – Tube is built to handle heavy loads. It is designed with the strength and durability required to support long – tube materials of different weights and sizes. The use of high – quality materials in its construction ensures that it can withstand the rigors of daily use in industrial environments. Whether you are storing small – diameter tubes or large, heavy – walled pipes, this rack system can handle the load with ease.
The telescopic feature of this rack system is what sets it apart from traditional storage solutions. The cantilever arms can be extended and retracted, allowing you to adjust the length of the rack according to the length of the long – tube materials you are storing. This not only maximizes the use of available space but also makes it easier to load and unload the tubes. When you need to store longer tubes, simply extend the cantilever arms; when you have shorter tubes or need to free up space, retract the arms. This flexibility makes the Telescopic Heavy – Duty Cantilever Rack for Long – Tube suitable for a wide range of long – tube storage needs.
Safety is a top priority when it comes to storing long – tube materials, and the Telescopic Heavy – Duty Cantilever Rack for Long – Tube is equipped with a range of safety features to ensure the protection of both the goods and the operators. The tilted cantilever design is a key safety feature. When the long – tube materials are placed on the cantilever arms, the weight can cause a downward angle shift. However, the upward angle of 2°~4° of the cantilever arms effectively prevents the tubes from rolling off the rack. This is especially important for cylindrical materials that have a tendency to slide when not properly secured.
The cantilever arm ends and base retainers further enhance the safety of the rack system. Retainers installed at the outer ends of the cantilever arms prevent the long – tube materials from rolling off the ends of the arms. Similarly, retainers on the base of the rack prevent the tubes from rolling under the rack or causing instability. These retainers act as a barrier, keeping the tubes securely in place and reducing the risk of accidents.
Specially designed cross braces are another important safety component of the Telescopic Heavy – Duty Cantilever Rack for Long – Tube. These cross braces connect the uprights of the rack horizontally and diagonally, creating a strong and stable structure. They help to distribute the weight of the stored long – tube materials evenly across the rack, reducing the stress on individual components. This not only enhances the overall stability of the rack but also extends its service life.
The extended base of the rack is designed to provide additional stability. By making the base longer than the cantilever arms, the rack is better able to resist the tilting forces that can be exerted by the stored long – tube materials. Even when the rack is fully loaded with heavy tubes, the extended base ensures that the structure remains upright and stable, minimizing the risk of toppling.
High – strength base bolts and premium – quality bolt fastening are used to secure the rack to the ground and reinforce the connection between the uprights and the base. Light – duty versions of the rack use nine M16120 bolts to secure the base, while heavy – duty models use four M18290 bolts. These bolts are made of high – quality materials, ensuring that they can withstand the weight of the rack and the stored materials. Additionally, Grade 8.8 premium expansion bolts (M12*110) are used to anchor the base to the ground. These expansion bolts create a strong and permanent connection, ensuring that the rack does not move or shift even in high – traffic areas.
In terms of material, the Telescopic Heavy – Duty Cantilever Rack for Long – Tube is typically constructed from carbon steel. Carbon steel is chosen for its excellent strength, durability, and resistance to wear and tear. It can withstand the heavy loads and harsh conditions commonly found in industrial warehouses, making it the ideal material for this type of rack system. The carbon steel is also treated to prevent rust and corrosion, further extending the life of the rack.
The number of layers of the Telescopic Heavy – Duty Cantilever Rack for Long – Tube is customizable, allowing you to adapt the rack to the height of your warehouse and the quantity of long – tube materials you need to store. Whether you need a 4 – layer rack for a small warehouse or a 12 – layer rack for a large facility, this rack system can be tailored to your specific needs. This customization option helps you to maximize the use of vertical space, freeing up valuable floor space for other operations.
The color of the rack can also be customized to meet your preferences or match your warehouse’s color scheme. Options such as white and blue are available, and you can also request a custom color if needed. This not only adds to the aesthetic appeal of the warehouse but also helps to improve visibility and organization.
In summary, the Telescopic Heavy – Duty Cantilever Rack for Long – Tube is a reliable and efficient storage solution for long – tube materials. Its telescopic design, heavy – duty construction, and comprehensive safety features make it the perfect choice for industrial facilities that need to store long – tube materials in a safe, organized, and accessible way. Whether you are looking to improve the storage efficiency of your warehouse or enhance the safety of your operations, this rack system is sure to meet your needs.
