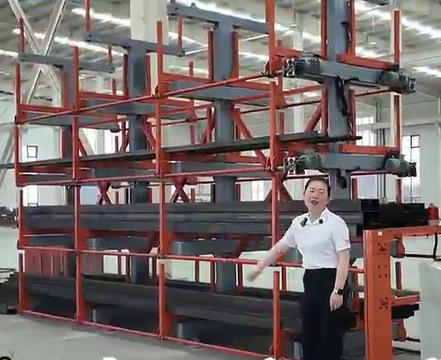

Electric Telescopic Cantilever Racks of Industrial Storage Solutions

In today’s fast-paced industrial environments, efficient material handling and space optimization are paramount. Electric telescopic cantilever racks have emerged as game-changing storage solutions, offering unparalleled accessibility, load capacity, and space utilization. These innovative systems are transforming warehouses, manufacturing facilities, and distribution centers by addressing longstanding challenges in material storage and retrieval.

Understanding Electric Telescopic Cantilever Racks

What Are Cantilever Racks?

Cantilever racks are specialized storage systems designed for long, bulky, or irregularly shaped items. Unlike traditional shelving units, cantilever racks feature arms that extend from vertical columns, creating an open storage space without front obstructions. This design allows for easy access to stored materials from both sides.

The Evolution to Electric Telescopic Systems

While manual cantilever racks have been used for decades, electric telescopic cantilever racks represent a significant technological leap. These advanced systems incorporate motorized arms that extend and retract with simple controls, eliminating the need for manual pushing or pulling of heavy loads. The integration of electric motors with precision control systems has revolutionized material handling in industrial settings.

Key Components of Electric Telescopic Cantilever Racks

1. ‌Telescopic Arms‌: The core feature that allows extension and retraction
2. ‌Electric Drive System‌: Motors and control mechanisms for smooth operation
3. ‌Structural Frame‌: Heavy-duty steel construction for stability and durability
4. ‌Control Panel‌: Interface for operation and safety features
5. ‌Safety Mechanisms‌: Including limit switches and emergency stop functions

Why Electric Telescopic Cantilever Racks Matter

Addressing Common Storage Challenges

Industrial facilities often struggle with:

• Inefficient use of vertical space
• Difficulty accessing materials stored in deep racks
• Time-consuming retrieval processes
• Safety concerns with heavy loads
• Limited flexibility for various material sizes

Electric telescopic cantilever racks directly address these issues by providing instant access to stored materials without requiring aisles between racks.

Space Optimization Benefits

Traditional shelving systems typically require wide aisles for forklift access, resulting in significant wasted space. Electric telescopic cantilever racks allow for:

• Aisles as narrow as 1.5 meters compared to 3-4 meters for conventional systems
• Ability to store materials at greater heights without compromising accessibility
• Elimination of “dead space” between stored items
• Increased storage density by up to 200% compared to conventional methods

Efficiency Improvements

The electric telescopic design offers substantial operational advantages:

• Reduced material handling time by up to 80%
• Elimination of “double handling” when retrieving items from deep storage
• Ability to operate with smaller forklifts or even manually in some cases
• Faster inventory turnover due to improved accessibility
• Reduced labor costs associated with material handling

Applications Across Industries

Manufacturing Facilities

In metalworking plants, these racks excel at storing:

• Sheet metal in various sizes and thicknesses
• Long pipes and tubes
• Extruded aluminum profiles
• Industrial beams and structural components

Construction Material Storage

Construction companies benefit from:

• Organized storage of lumber and timber
• Easy access to steel beams and rebar
• Space-efficient storage of plumbing pipes
• Safe handling of glass panels

Automotive Sector Applications

Electric telescopic cantilever racks are ideal for:

• Stamping dies and tooling
• Body panels and components
• Long automotive parts
• Wheels and tires

Aerospace and Defense Uses

The precision and strength of these systems make them perfect for:

• Aircraft components
• Missile parts
• Large structural elements
• Specialized tooling

Customization Options for Electric Telescopic Cantilever Racks

Size and Capacity Customization

One of the most significant advantages of electric telescopic cantilever racks is their adaptability to specific needs:

• ‌Storage Length‌: Ranging from 3000mm to 12000+mm (customizable)
• ‌Loading per Layer‌: Up to 6 tons per layer (customizable)
• ‌Max Load per Rack‌: Customizable based on design requirements
• ‌Unit Type‌: Available in single or double configurations

Arm Length and Layer Configuration

• ‌Arm Length‌: Ranging from 550mm to 800mm (customizable)
• ‌Number of Layers‌: Typically 3+1 or 4+1 configurations (customizable)
• ‌Distance Between Layers‌: Standardized at 600mm or 800mm (customizable)

Operation and Control Systems

• ‌PLC Frequency Conversion Control‌: Ensures smooth operation and precise positioning
• ‌Customizable Control Interfaces‌: Can be adapted to existing warehouse management systems
• ‌Safety Features‌: Including emergency stop buttons and overload protection

Aesthetic Customization

• ‌Color Options‌: Standard orange/blue or customizable colors
• ‌Branding Opportunities‌: Custom labels or company logos
• ‌Finish Options‌: Various powder coating finishes for durability

Installation and Implementation

On-site Installation Process

Professional installation typically involves:

1. Site assessment and preparation
2. Unpacking and inventory of components
3. Assembly of structural components
4. Installation of electrical components
5. Testing and calibration
6. Operator training

Online Guidance and Support

Many manufacturers offer:

• Digital installation manuals
• Video tutorials
• Remote assistance via video call
• Online troubleshooting resources

Integration with Existing Systems

Electric telescopic cantilever racks can be integrated with:

• Warehouse management systems (WMS)
• Material handling equipment
• Production line systems
• Inventory tracking software

Safety Considerations and Best Practices

Load Capacity Understanding

• Always verify the maximum load capacity of each layer
• Distribute weight evenly across the arms
• Never exceed the recommended load capacity
• Consider dynamic loads during operation

Operational Safety Measures

• Implement clear safety protocols for operators
• Ensure proper training for all personnel
• Maintain clear access paths around the racks
• Regularly inspect safety features

Maintenance Requirements

• Regular inspections of electrical components
• Lubrication of moving parts
• Periodic load testing
• Software updates for control systems

Comparing Electric vs. Manual Cantilever Racks

Operational Differences

• ‌Effort Required‌: Electric systems require minimal physical effort
• ‌Speed‌: Electric systems offer faster retrieval times
• ‌Precision‌: More precise positioning with electric systems
• ‌Labor Requirements‌: Reduced need for manual labor

Cost Considerations

• ‌Initial Investment‌: Higher for electric systems
• ‌Operational Costs‌: Potentially lower due to efficiency gains
• ‌Maintenance Costs‌: Slightly higher for electric systems
• ‌Return on Investment‌: Often favorable due to efficiency gains

Suitability Factors

• ‌Volume of Storage‌: Electric systems better for high-volume operations
• ‌Material Characteristics‌: Both suitable for long materials
• ‌Space Constraints‌: Both space-efficient, but electric offers more flexibility
• ‌Budget Considerations‌: Manual systems may be preferred for smaller operations

Future Trends in Cantilever Rack Technology

Automation Integration

• Increased automation through robotic interfaces
• Integration with autonomous material handling systems
• Smart storage solutions with IoT capabilities

Material Innovations

• Development of lighter yet stronger materials
• Improved corrosion-resistant coatings
• Enhanced wear-resistant surfaces

Energy Efficiency Improvements

• More efficient electric motors
• Energy recovery systems
• Solar-powered options

Smart Storage Solutions

• Real-time inventory tracking
• Predictive maintenance capabilities
• AI-optimized storage configurations

Conclusion

Electric telescopic cantilever racks represent a significant advancement in industrial storage solutions. By combining the space-saving benefits of cantilever design with the efficiency of electric telescopic operation, these systems offer unparalleled advantages in material handling and warehouse optimization. As industries continue to evolve towards smarter, more efficient operations, electric telescopic cantilever racks are positioned to play an increasingly vital role in modern material handling systems.
